Description:

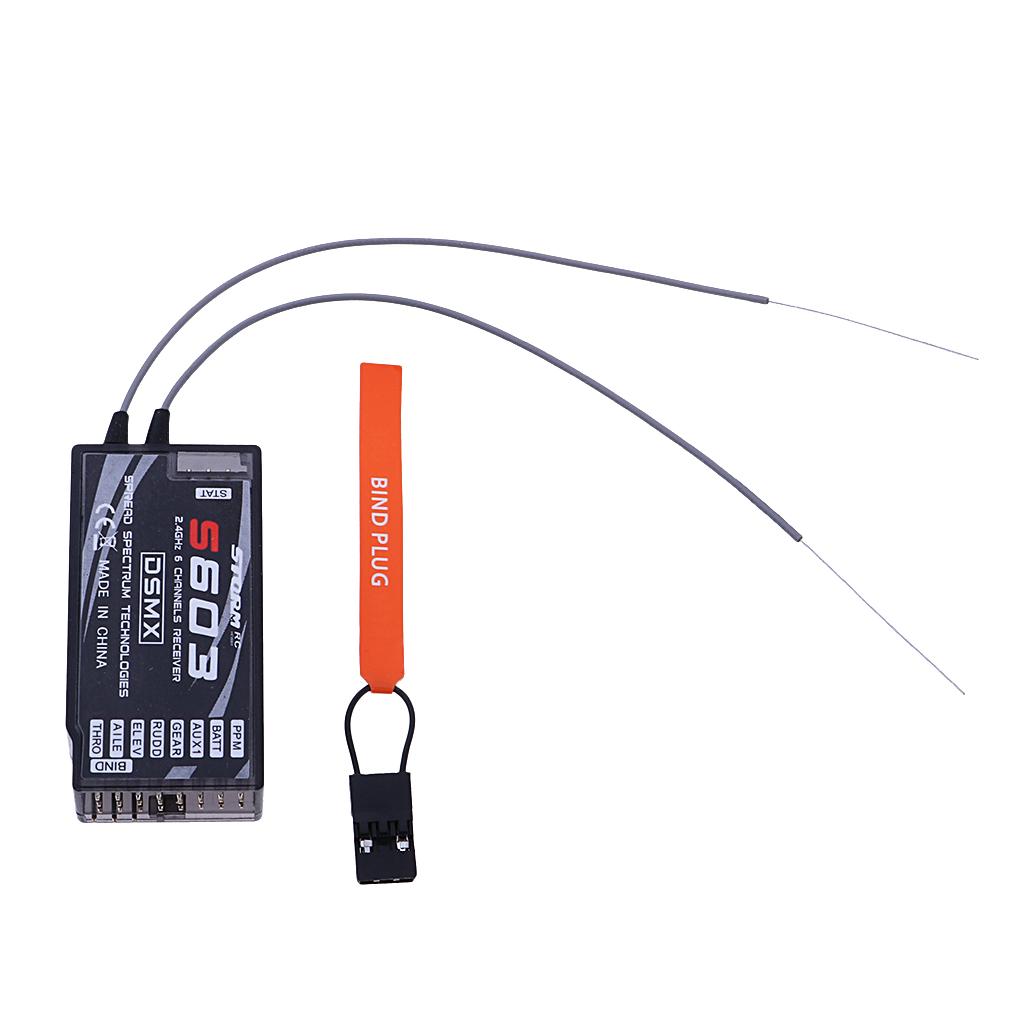

S603 supports JR and SPECTRUM DSM-X, DSM2 two modes, automatic search mode
The PPM output is one PPM more than the AR6210 channel, so it is 7 channels. The insertion direction is different, and the PPM output supports multi-axis flight
Antenna with 3dbi gain dedicated antenna, internal 15db gain amplifier distance anti-interference, farther
Pair code: Insert the code encoder to the BIND socket on the receiver; power on the receiver; press and hold the code switch on the transmitter; the receiver light flashes to steady light; if the code is successful, unplug the code
Separate output with separate PPM;Under normal use, the air distance is about 1.5 kilometers.
With external small satellite function (the satellite itself does not need to be purchased separately) can be used without it

Specification:

Channels: 7CH
RF Range: 2.4GHz
Power Input: 3.3-9.6V
Material: Metal

Size Chart:

Size: 5 x 2.7 x 1.6cm/ 1.96 x 1.06 x 0.62inch

Package Includes:

1 Piece S603 Receiver

Note:

In some special cases, such as strong interference, the signal may be lost. When the signal is temporarily lost, the receiver continues to try to find the transmitter while maintaining the last order received from the transmitter until a new order is received. The control distance is also affected by the environment.
Please test and use it outdoors away from any obstacles. The control distance in the air is greater than the distance from the ground.
