Description:

Solid state relay : AC and DC switch and temperature control(3 32V DC to 24 480V AC 40A)
Industrial paper animation control
CNC machine, remote control system
Bridge pile, also known as "rectifier bridge" or "rectifier bridge pile."
Mainly divided into two categories: single-phase rectifier bridge, three-phase rectifier bridge.
Single-phase rectifier bridge models: KBPC, QL, QLF, BR.
Main models of three-phase rectifier bridge: SKBPC, SQL, SQLF, SBR.
Works well in an environment with little or no ventilation
Improved temperature and power circuit
Easy to install, thanks to the attachment hole
Current : 5-300A
Voltage : 600-1600V

Specification:

Model: SSR 10A
Solid state relay SSR-10A (black)
AC and DC switch and temperature control
Industrial paper animation control
CNC machine, remote control system
Material: Aluminum Copper Plastic
Relay size: approx. 57 x 44 x 30mm/ 2.24 x 1.73 x 1.18inch

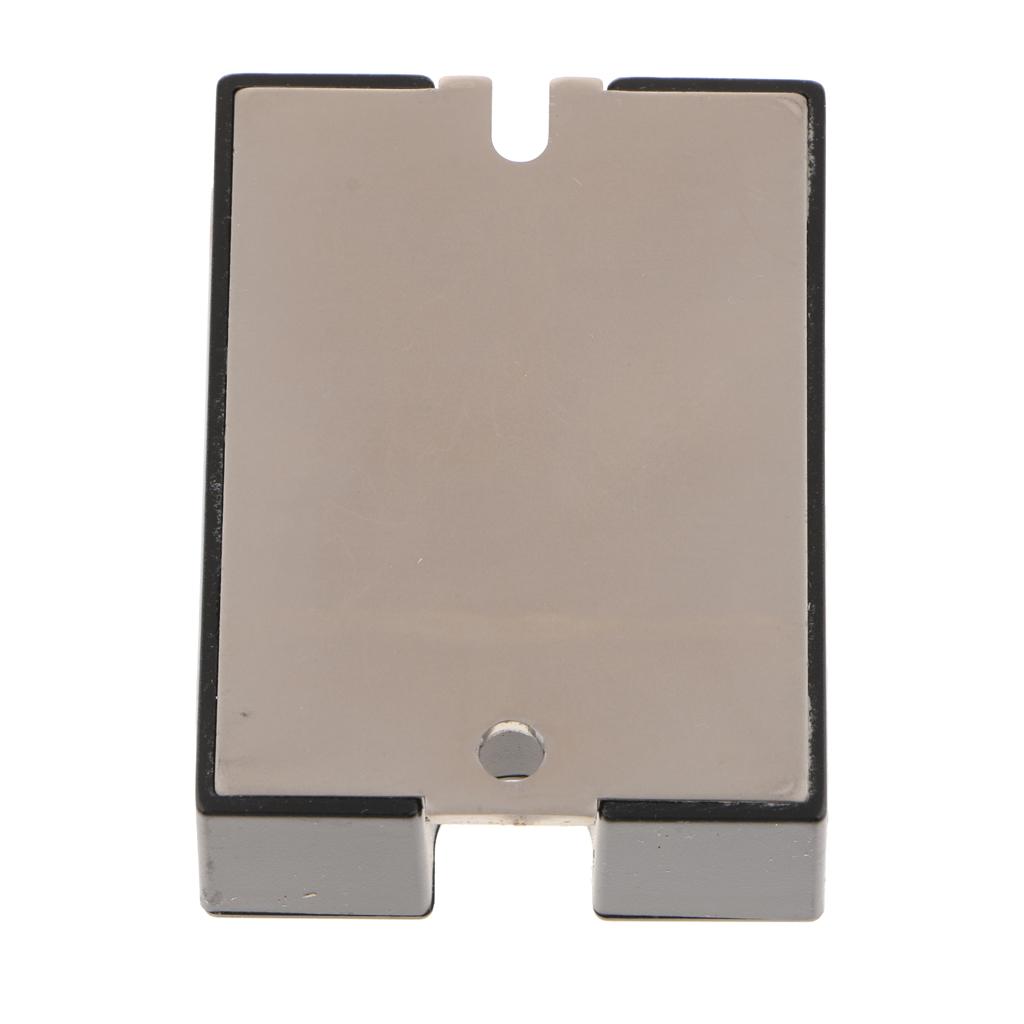

Model: SSR 15A
Solid state relay SSR-15A (black)
AC and DC switch and temperature control
Industrial paper animation control
CNC machine, remote control system
Material: Aluminum Copper Plastic
Relay size: approx. 57 x 44 x 30mm/ 2.24 x 1.73 x 1.18inch
Model: SSR 25A
Solid state relay SSR-25A (black)
AC and DC switch and temperature control
Industrial paper animation control
CNC machine, remote control system
Material: Aluminum Copper Plastic
Relay size: approx. 57 x 44 x 30mm/ 2.24 x 1.73 x 1.18inch
Model: SSR 40A
Solid state relay SSR-40A (black)
AC and DC switch and temperature control
Industrial paper animation control
CNC machine, remote control system
Material: Aluminum Copper Plastic
Relay size: approx. 57 x 44 x 30mm/ 2.24 x 1.73 x 1.18inch
Model: SSR 60A
Solid state relay SSR-60A (black)
AC and DC switch and temperature control
Industrial paper animation control
CNC machine, remote control system
Material: Aluminum Copper Plastic
Relay size: approx. 57 x 44 x 30mm/ 2.24 x 1.73 x 1.18inch
Model: QLF 20A 1200V
QLF20A rectifier bridge stack
Single-phase rectifier bridge models: KBPC, QL, QLF, BR.
Main models of three-phase rectifier bridge: SKBPC, SQL, SQLF, SBR.
Current : 5-300A
Voltage : 600-1600V
Material: aluminum profile copper
Rectifier bridge size: approx. 60 x 35 x 40mm/ 2.36 x 1.38 x 1.57inch
Model: SQLF 10A 1200V
Single-phase rectifier bridge models: KBPC, QL, QLF, BR.
Main models of three-phase rectifier bridge: SKBPC, SQL, SQLF, SBR.
Current : 5-300A
Voltage : 600-1600V
Material: aluminum profile copper
Rectifier bridge size: approx. 62 x 35 x 42mm/ 2.44 x 1.38 x 1.65inch
Model: SQLF 20A 1200V
Single-phase rectifier bridge models: KBPC, QL, QLF, BR.
Main models of three-phase rectifier bridge: SKBPC, SQL, SQLF, SBR.
Current : 5-300A
Voltage : 600-1600V
Material: aluminum profile copper
Rectifier bridge size: approx. 70 x 35 x 42mm/ 2.76 x 1.38 x 1.65inch
Model: QLF 30A 1200V
Bridge Stacked Bridge Rectifier QLF30A Silicon Controlled Rectifier
Single-phase rectifier bridge models: KBPC, QL, QLF, BR.
Main models of three-phase rectifier bridge: SKBPC, SQL, SQLF, SBR.
Current : 5-300A
Voltage : 600-1600V
Material: aluminum profile copper
Rectifier bridge size: approx. 70 x 35 x 42mm/ 2.76 x 1.38 x 1.65inch
Model: MDQ 100A 1600V
Single Phase Rectifier Bridge Module MDQ 100A 1600V Black
Current : 5-300A
Voltage : 600-1600V
Material: copper
Rectifier bridge size: approx. 80 x 40 x 33mm/ 3.15 x 1.57 x 1.30inch

Package Includes:

1 Piece Solid state relay or 1 Piece Rectifier bridge

Note:

Please allow 1-3mm error due to manual measurement.
Please make sure you do not mind before you bid.
Photo color might be a little different from the actual product due to color display of different monitors.
Thanks for your understanding and enjoy your shopping moment.
