Description:

Copper foil tape is used for electromagnetic radiation interference have better shielding effect

Good grounding electrostatic discharge performance,

Used for soldering purposes.

Specification:

Material: CU 99.98%

Colloidal components: conductive adhesive (heat induction of the acrylic plastic)

Tack: 350u

Test parameters:

Adhesion: 1.5 - 1.3kg / 25mm

Temperature: -10-120

Intensity: 4.5 - 4.8kg / mm

Elongation: 7-7% - 3-4%

Size Chart:

Thickness: 0.2mm

Size: 30x20 cm/ 11.8x 7.88 in

Package Includes:

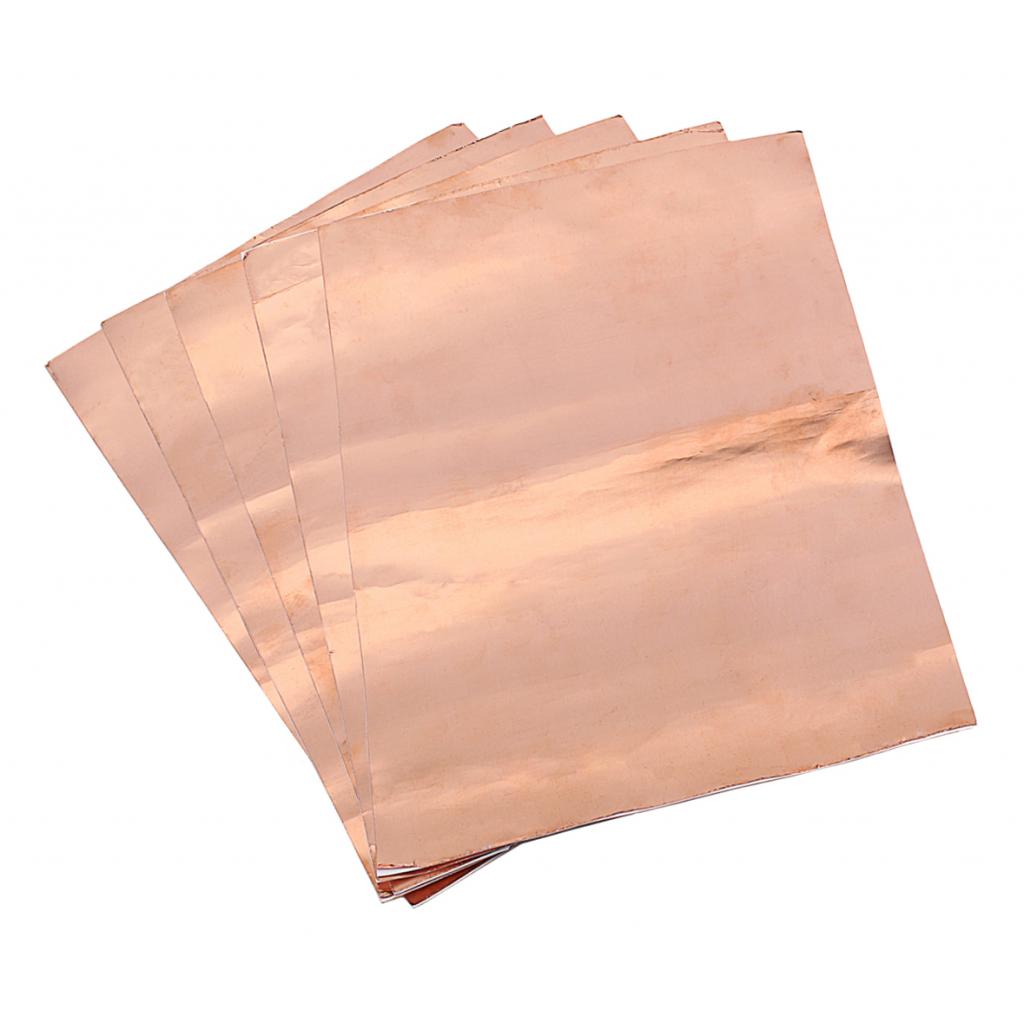

5 Pieces Copper Foil Paper

Note:

1. Test conditions for the room temperature 25 degree, relative humidity below 65 degree by the United States detected by the ASTM-D1000.

2. When you save the goods, please keep dry indoor ventilation, save a long time;

3. The product is mainly used to eliminate electromagnetic interference EMI, electromagnetic isolation for the human body, mainly used in computer peripherals wire, computer monitors.

4. sided conductive,inside with double guide can also be conductive glue, can be conductive copper outside

Please allow 1-3mm measuring deviation due to manual measurement.

Due to the different monitor and light effect,the actual color of the item might be slightly different from the color showed on the pictures.
