Description:

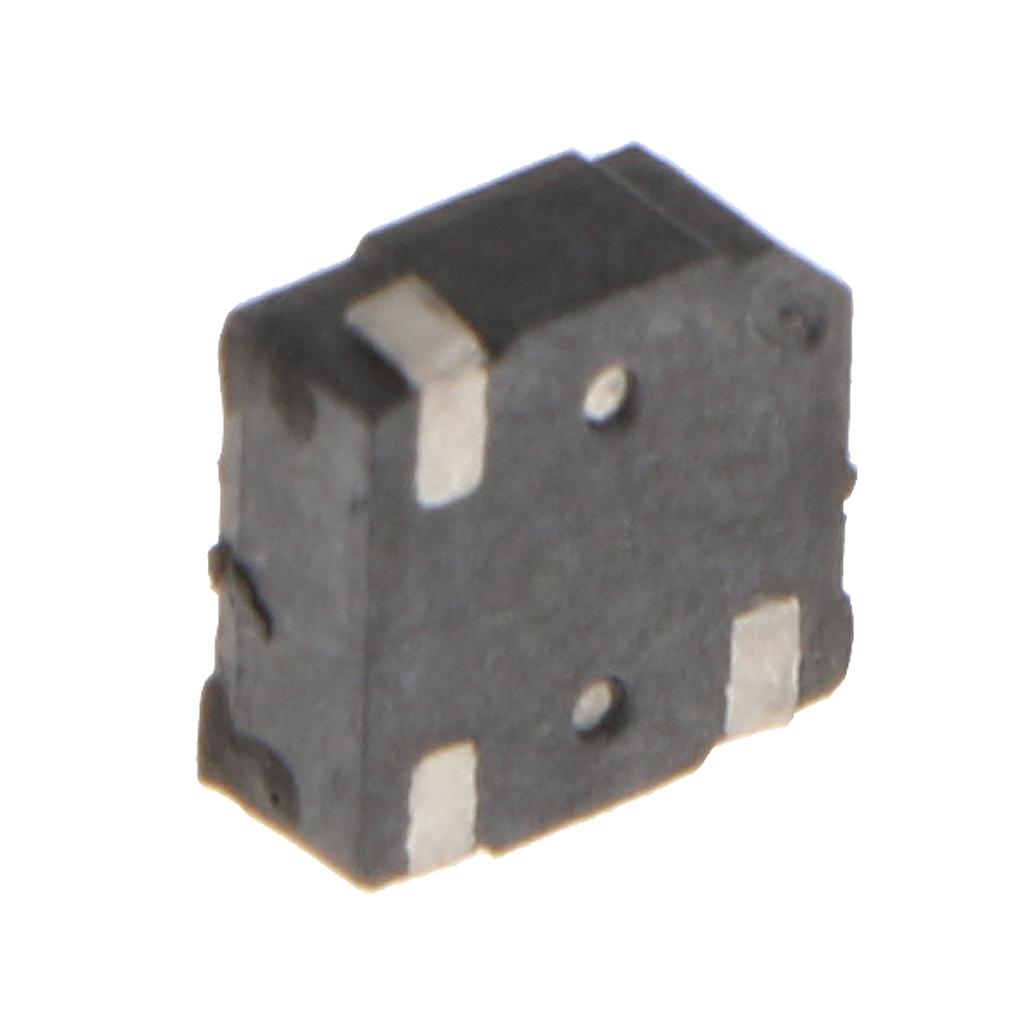

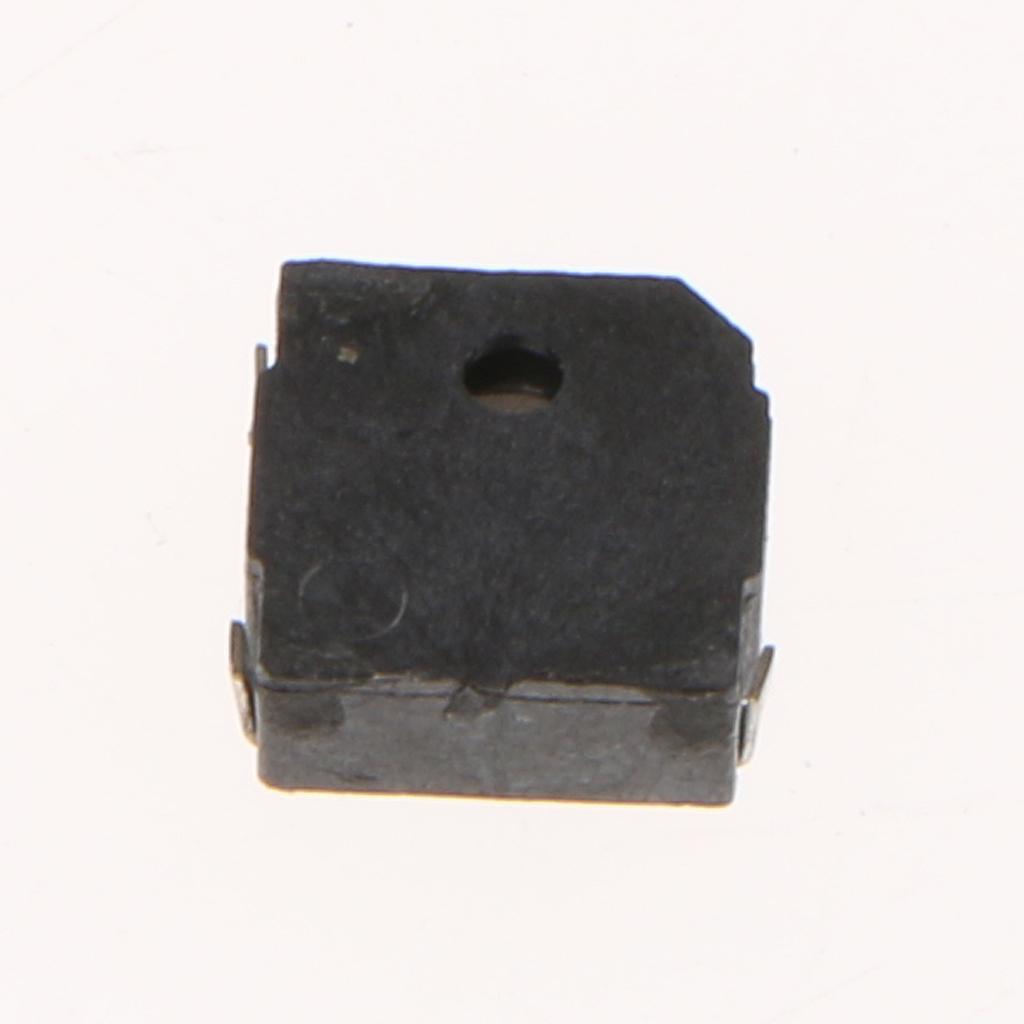

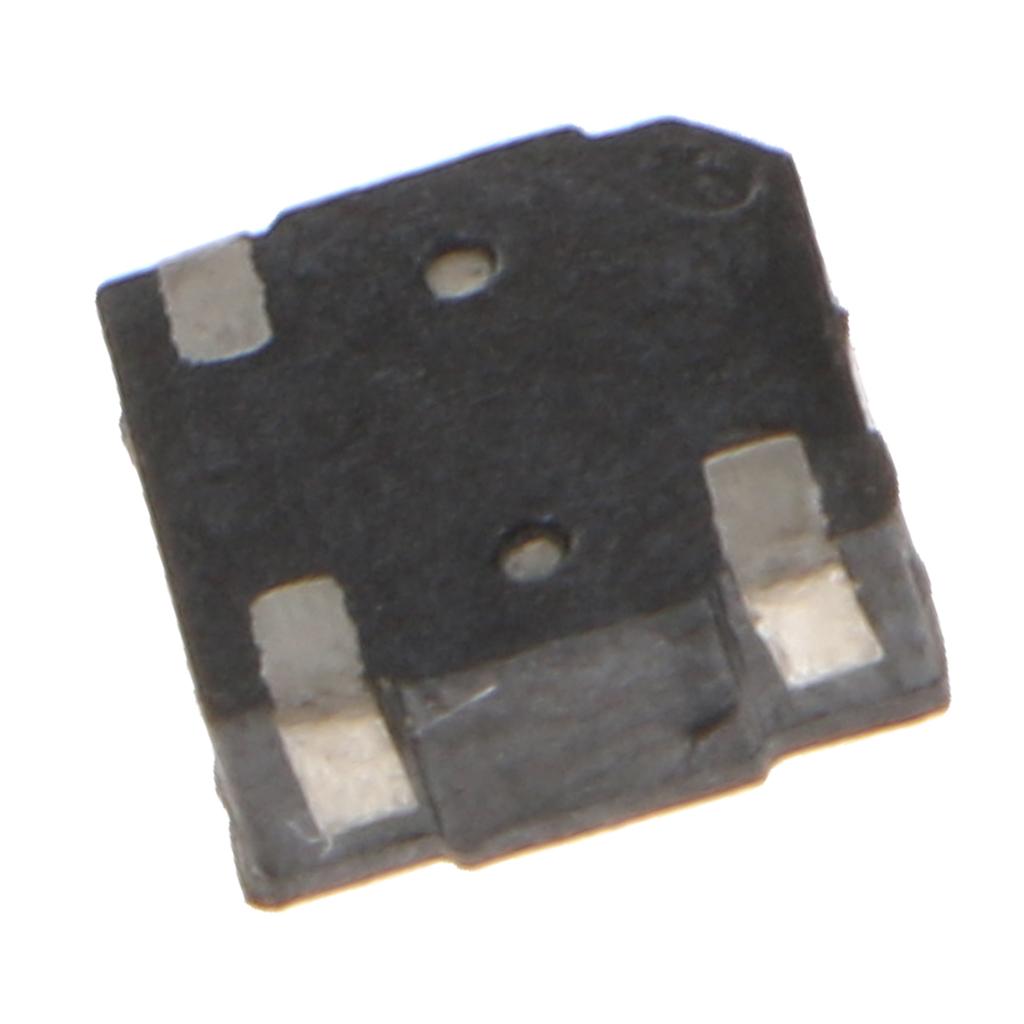

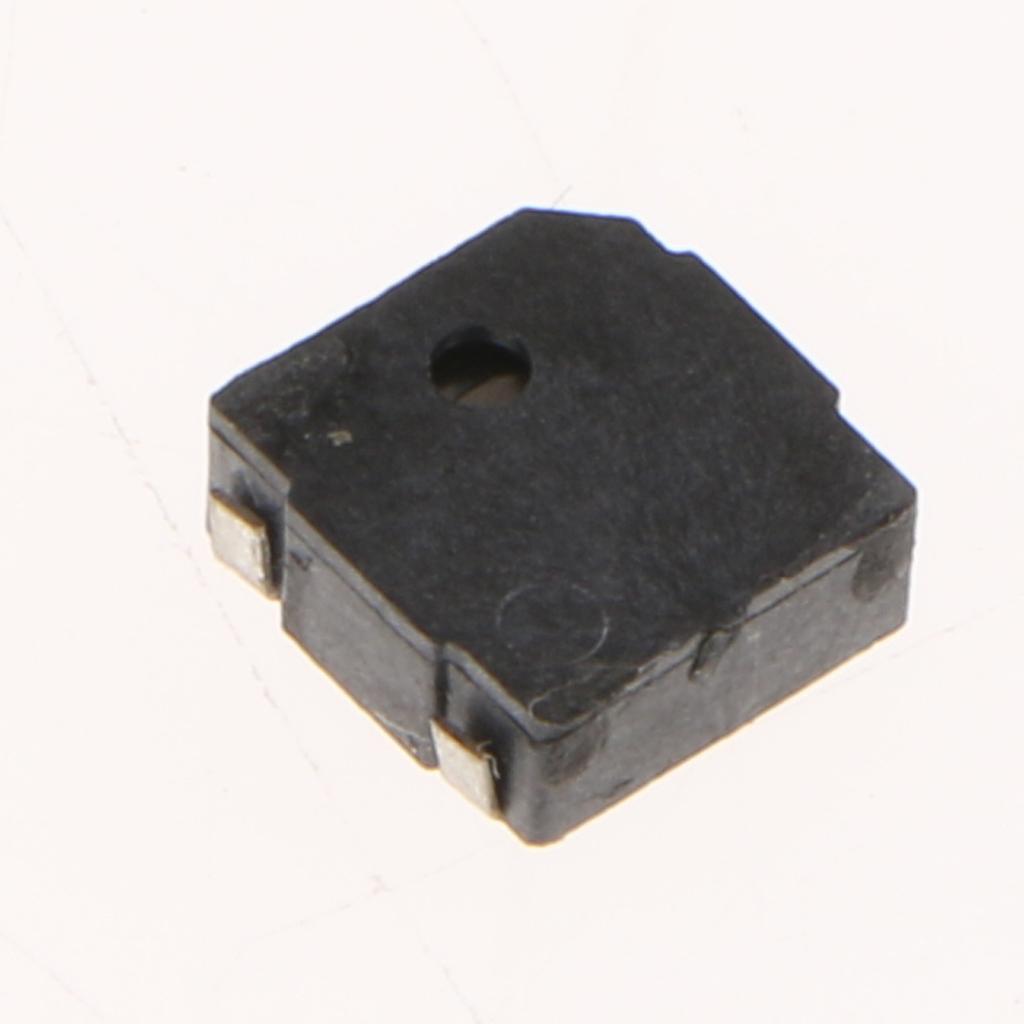

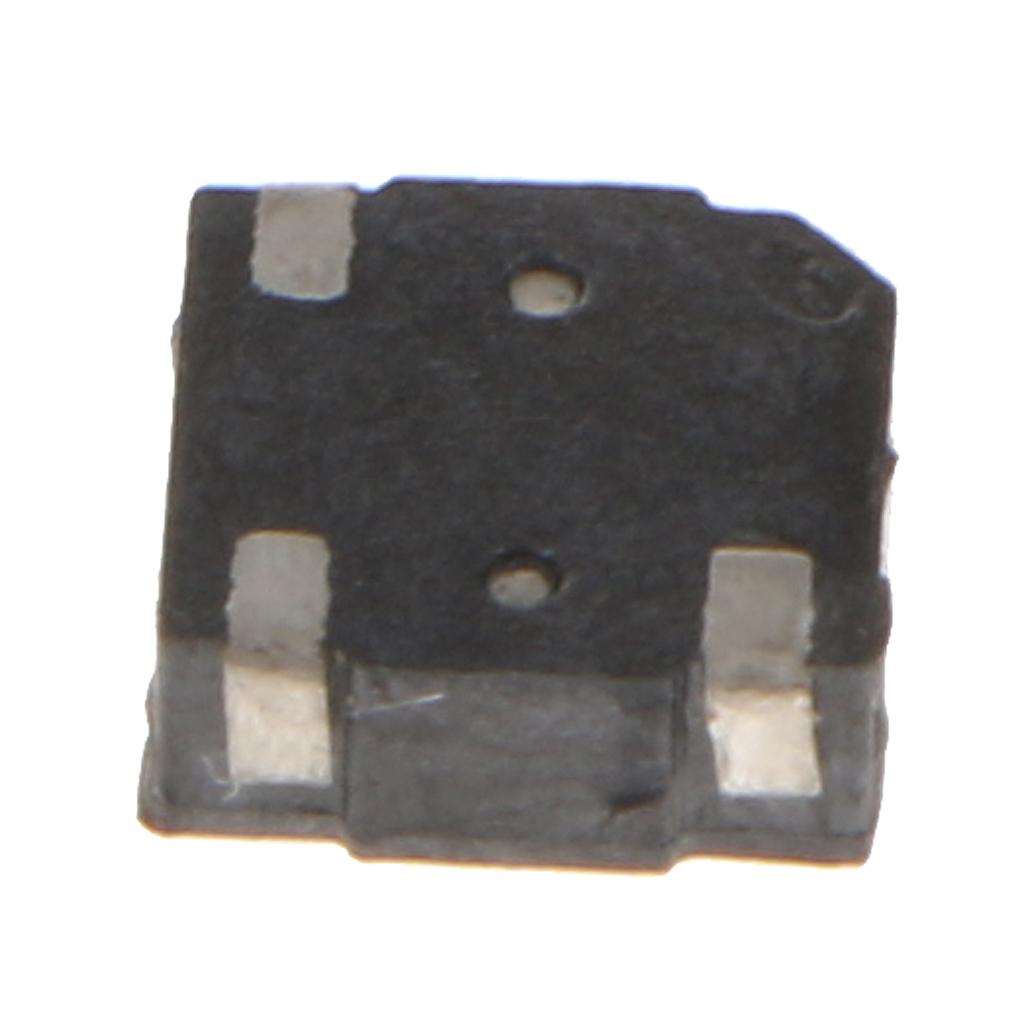

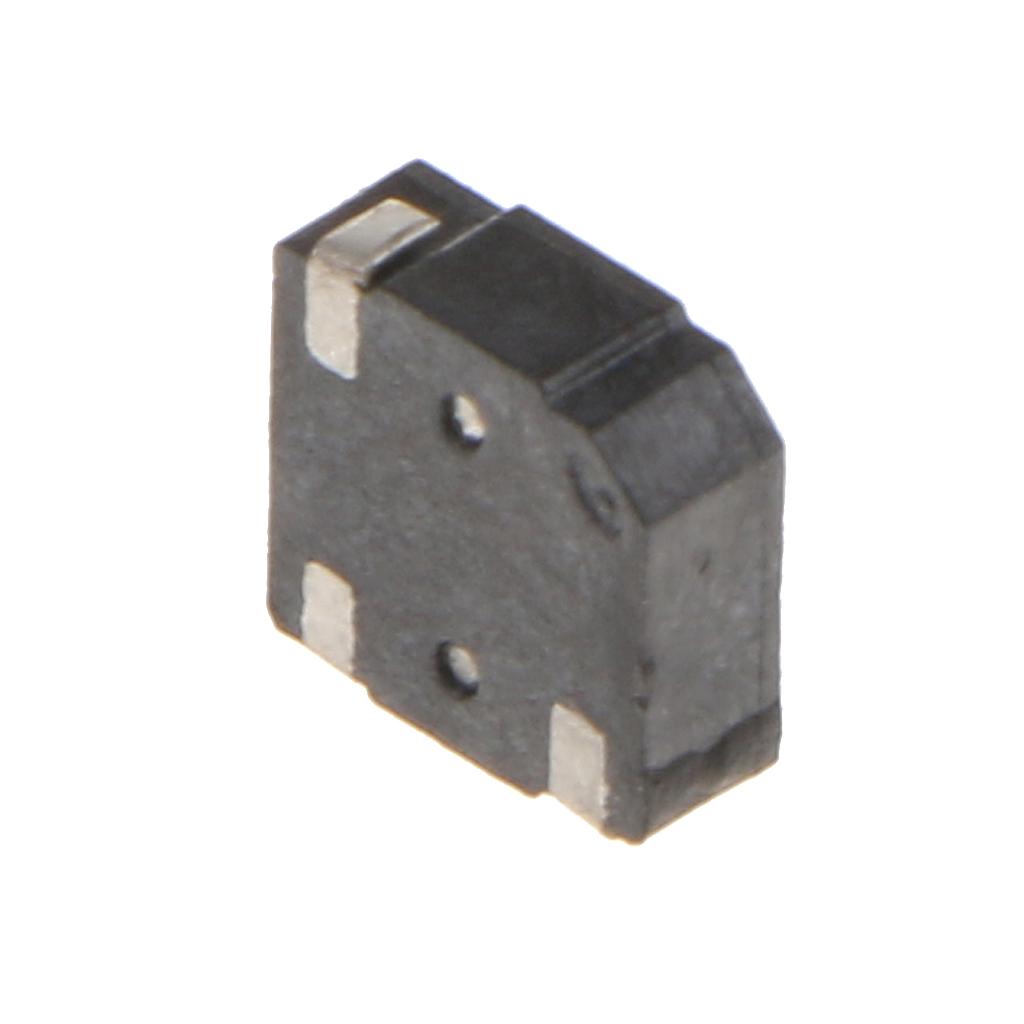

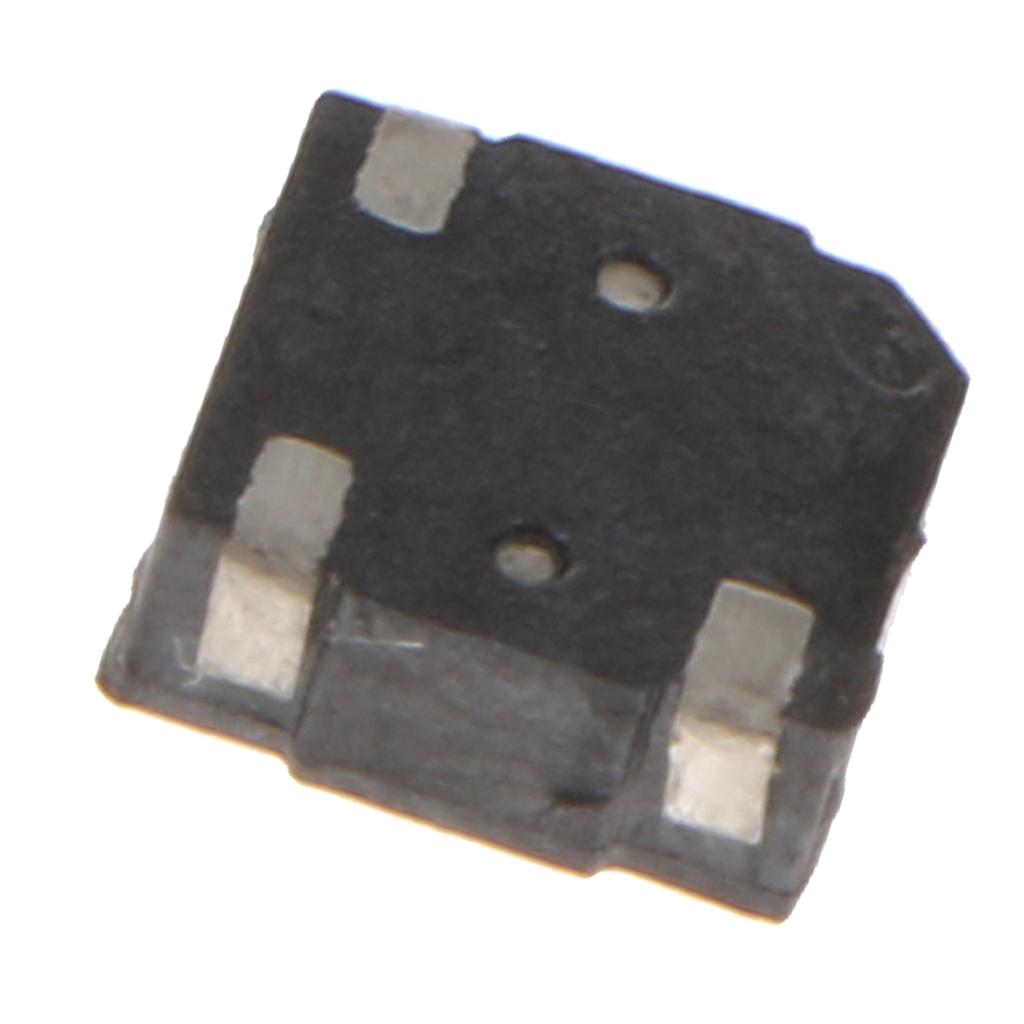

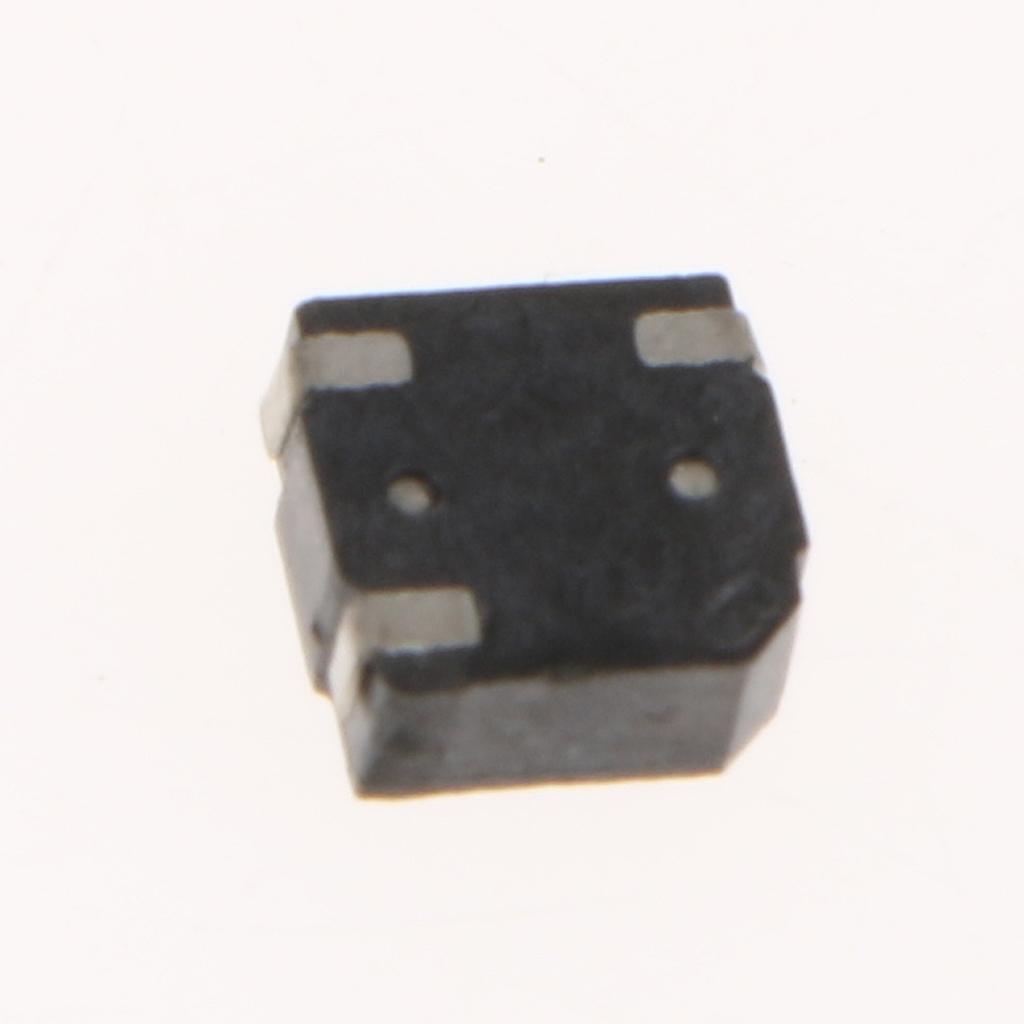

Electromagnetic SMD Passive Buzzer.
Small size; Good sound quality.
Rated Voltage: 3V; Operating Voltage: 2-5V.
Oscillation Frequency: 4000Hz.
Application Range: communication, household appliances, automobile, electric bicycle, UPS power, alarm; Instruments, electronic sound toys and electronic clocks.

Specification:

Product Name: SMD Buzzer
Material: LCP
Dimension: 5x5x2mm/0.2x0.2x0.08inch
Rated Voltage: 3V
Operating Voltage: 2-5V
Rated Current(max.): 110mA
Oscillation Frequency: 4000Hz
Coil Resistance: 12Ω±3Ω
Sound Pressure Level: 80dB/min
Operating Temperature: -25℃ ~ 70℃
Storage Temperature: -30℃ ~ 80℃
Channel Number: Mono
Source: Passive
Mounted Type: SMD
Weight: 0.3g

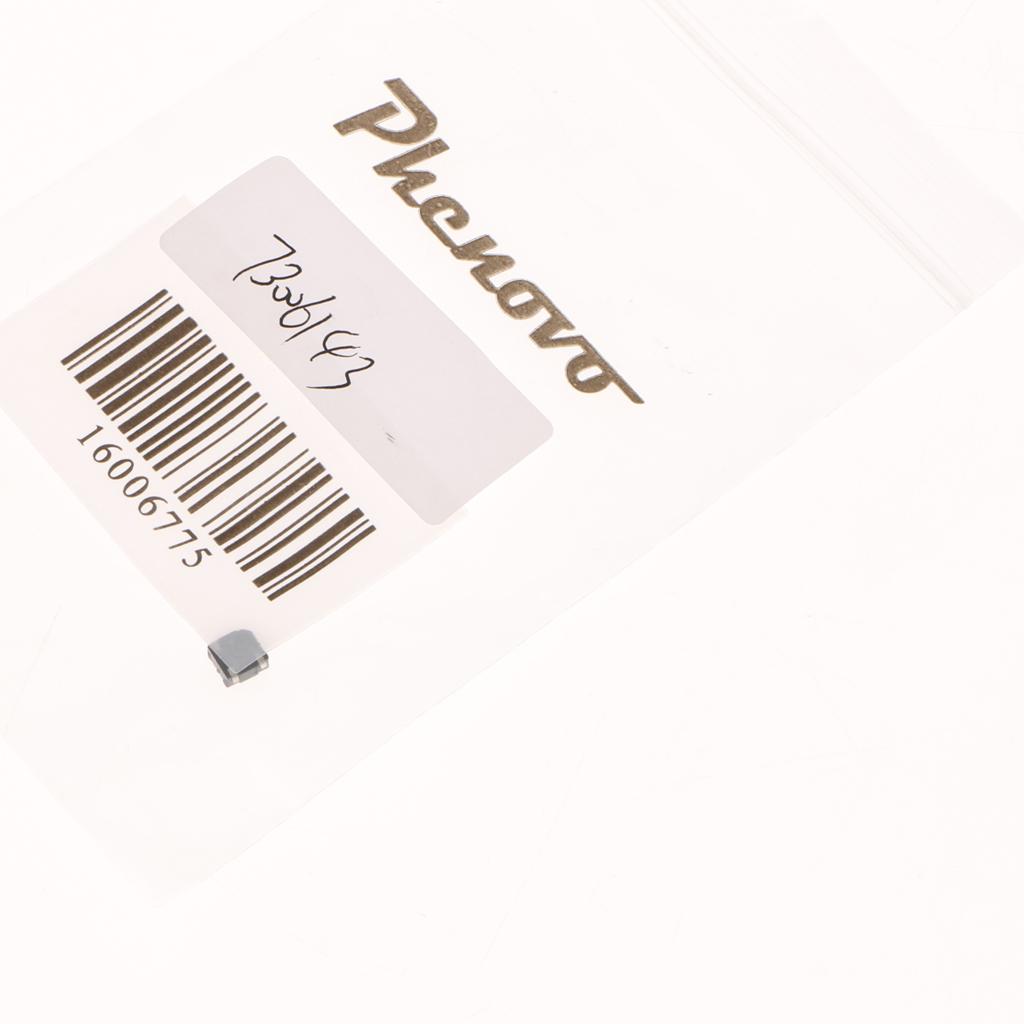

Package Includes:

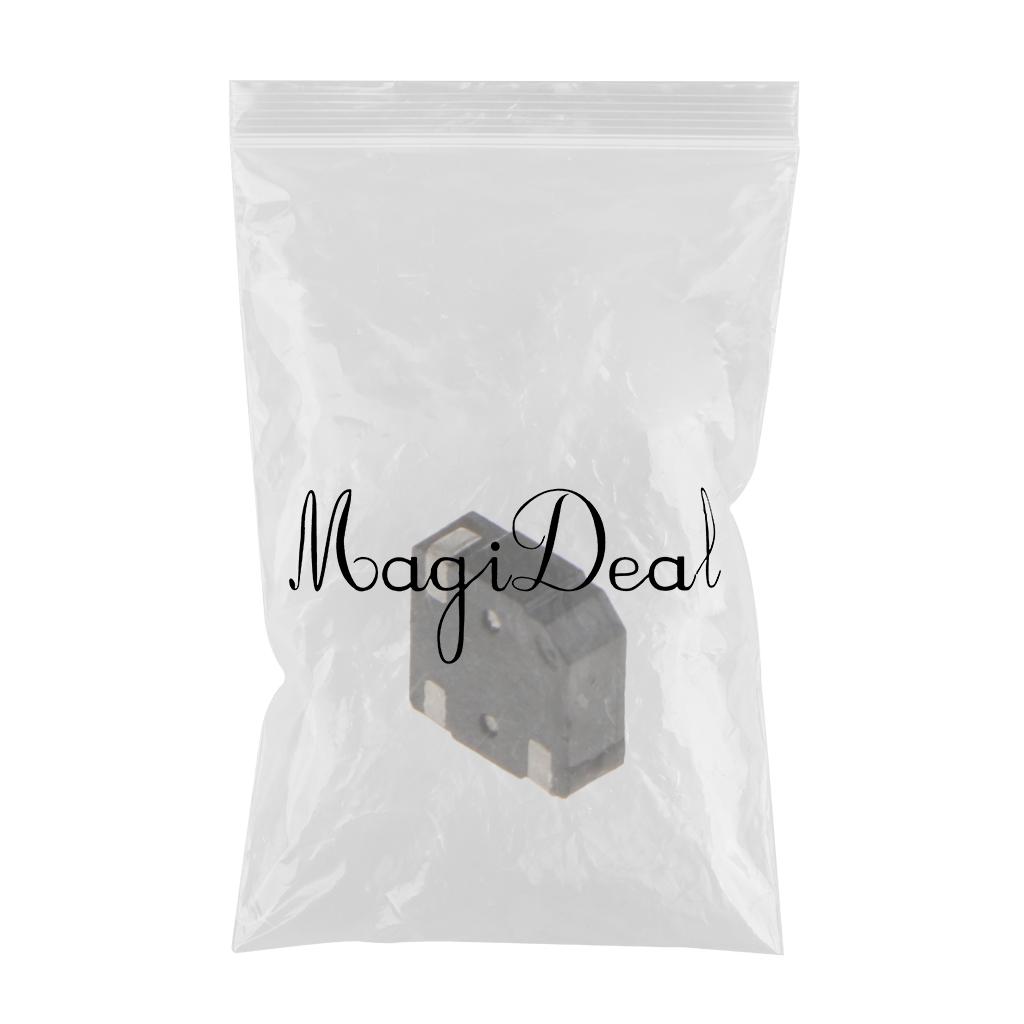

1 Piece SMD Passive Buzzer
