Description:

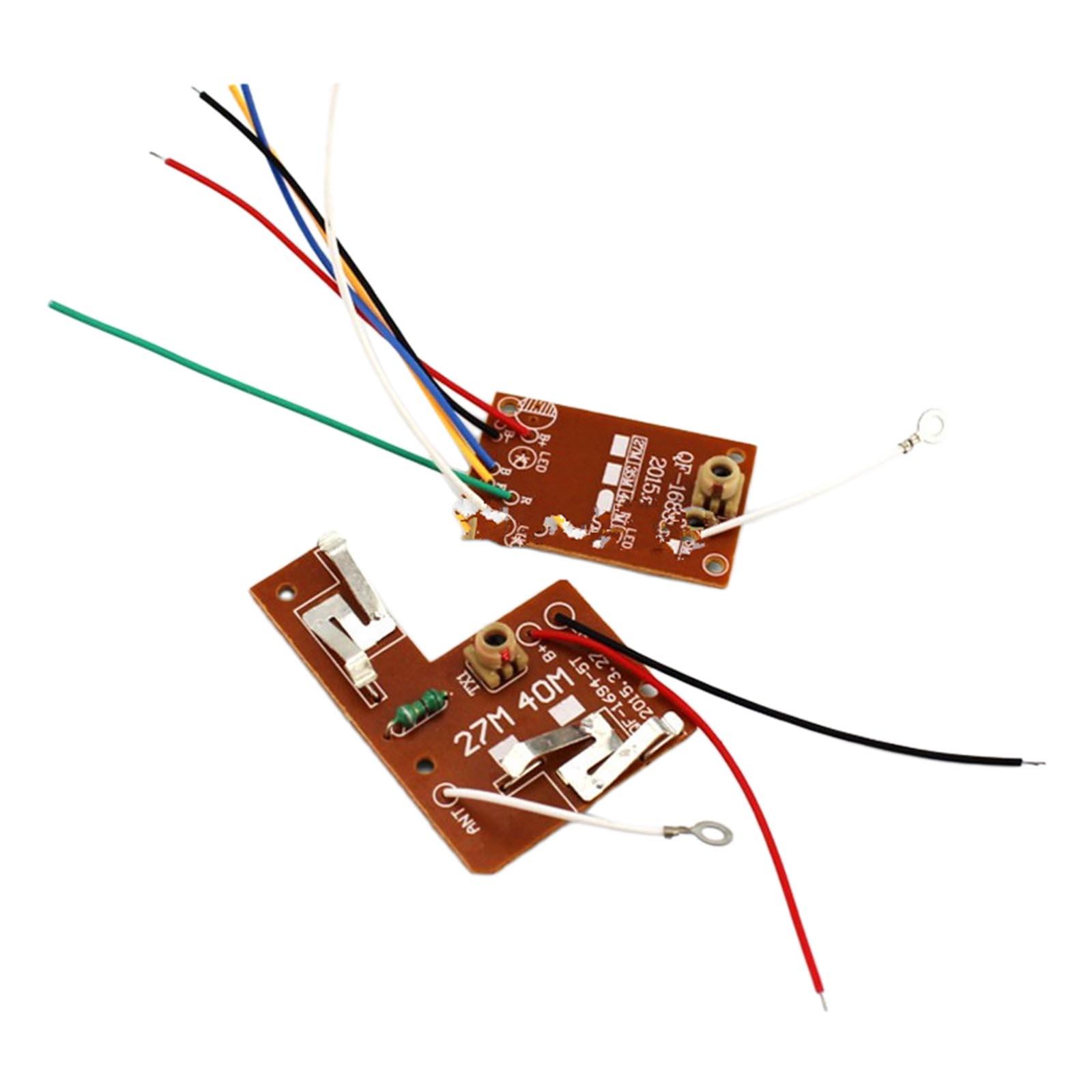

Receiver Transmitter Board: 27MHZ 4CH RC Remote Control Circuit PCB Receiver &Transmitter Board with Antenna for DIY RC Car Truck Accessories
The maximum output voltage of the receiving board: 4 lines, 2 pairs and 1 group, output two voltages, the size is about 2-3.5V, respectively control the forward and reverse rotation of one motor, and the motor with 3V voltage can be used.
Features: The two output voltages may have different sizes, which may be obvious when the battery power is insufficient. Therefore, it is recommended to use the small voltage separately for the steering motor; the remote control distance, in the case of sufficient power, no Interference, about 10 meters after connecting the antenna correctly
Wiring method: transmitter board: red wire V+ is connected to the positive pole of the power supply, black wire V- is connected to the negative pole of the power supply, and ANT is connected to the antenna; receiving board: the black wire is connected to the negative pole of the power supply, and the red wire is connected to the positive pole of the power supply; yellow wire with green wire is connected to motor ( Two long wires are connected to motor 1, and two short wires are connected to motor 2)
Working Voltage: Receiver 4.5-6V, Transmitter 4.5V

Specification:

Material: Electronic Component

Size Chart:

Receiver Board /1.02x1.69inch
Transmitter Board 3.5x7cm/1.38x2.76inch

Package Includes:

1x Receiver Board
1x Transmitter Board
