Description:

Wireless control, easy to install

Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.

You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.

With characteristics of reverse power protection and over current protection，Audible / visual indication

Case Size: Approx.85mm x 68mm x 11cm/3.34x2.67x4.33inch

Anti-interference, waterproof, shielded wire set inside

Magnetic stand design for easy to install

Specification:

Working voltage: 8-12V

Working current: ≤5-10mA

Method: SAW resonant oscillation

Modulation: ASK

Operating frequency: 315MHz

Frequency deviation: ±150kHz(max)

Transmit power: 10mW

Sensitivity：>= -103 dB

Coding format: PT2262, EV1527, etc.

Package Includes:

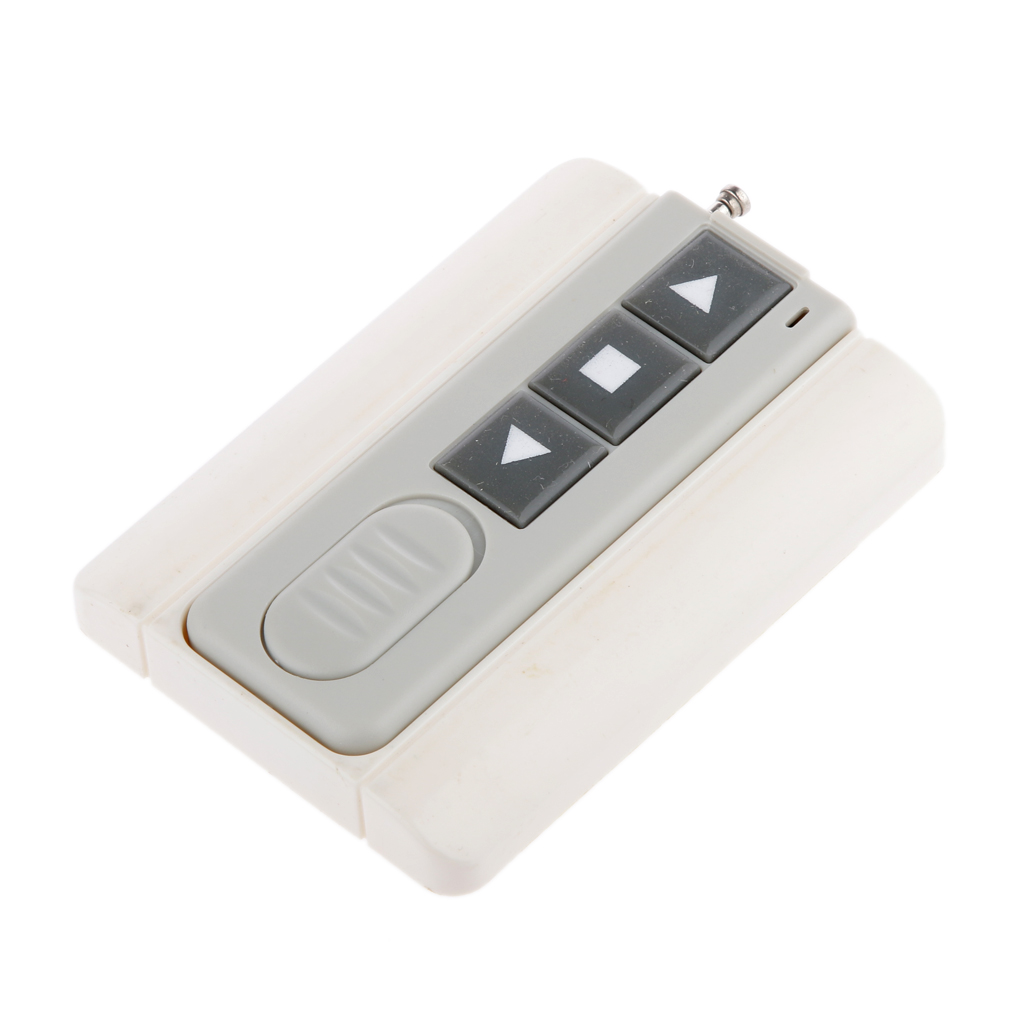

1 x RF3 key 103D remote controller with switch

1 x Paper instruction
