Description:

LED quantity: 1R 1G 1B regular RGB lamp beads,
It can be common anode, customized common cathode,
It can also be used with a single monochrome lamp beads corresponding string,
Internal control on the gradient
Common application for colorful underwater lights, buried lights, lawn lights, step lights and other lamps

Specification:

Parameter standard / Parameter standard
Model / Model: PL-RGB WLV-250-4 gradient
Reference standard Basic on: IEC 61347
Technical parameter / Technographic Data
Input/Input rated voltage/Rated voltage: AC12V
Lose / Output
Output Current(Load) / Outcut Current(Loading): 250MA * 3 ± 5 %
Output voltage(load) / Out force(working): DC2-4V
Output voltage(empty) / Outcut voltage(no loading) DC ≤ 25V
Short circuit protection/Short-circuit projects: OK
Overloading / Over loading: OK
Efficiency / efficiency ≥ 85 %
Power factor: ≥ 60 %
Working Temperature / Working Temporure -25 °C ~ +40 °C
Operations Size(mm): L * W * H = 76 x30x 20mm/2.99x1.18x0.79inch
Number of LEDs: 1R1G 1B 1W Conventional RGB W ball, common anode, can also be customized common cathode, or can be used for a single monochrome ball string and use
Control mode: internal control gradient

Package Includes:

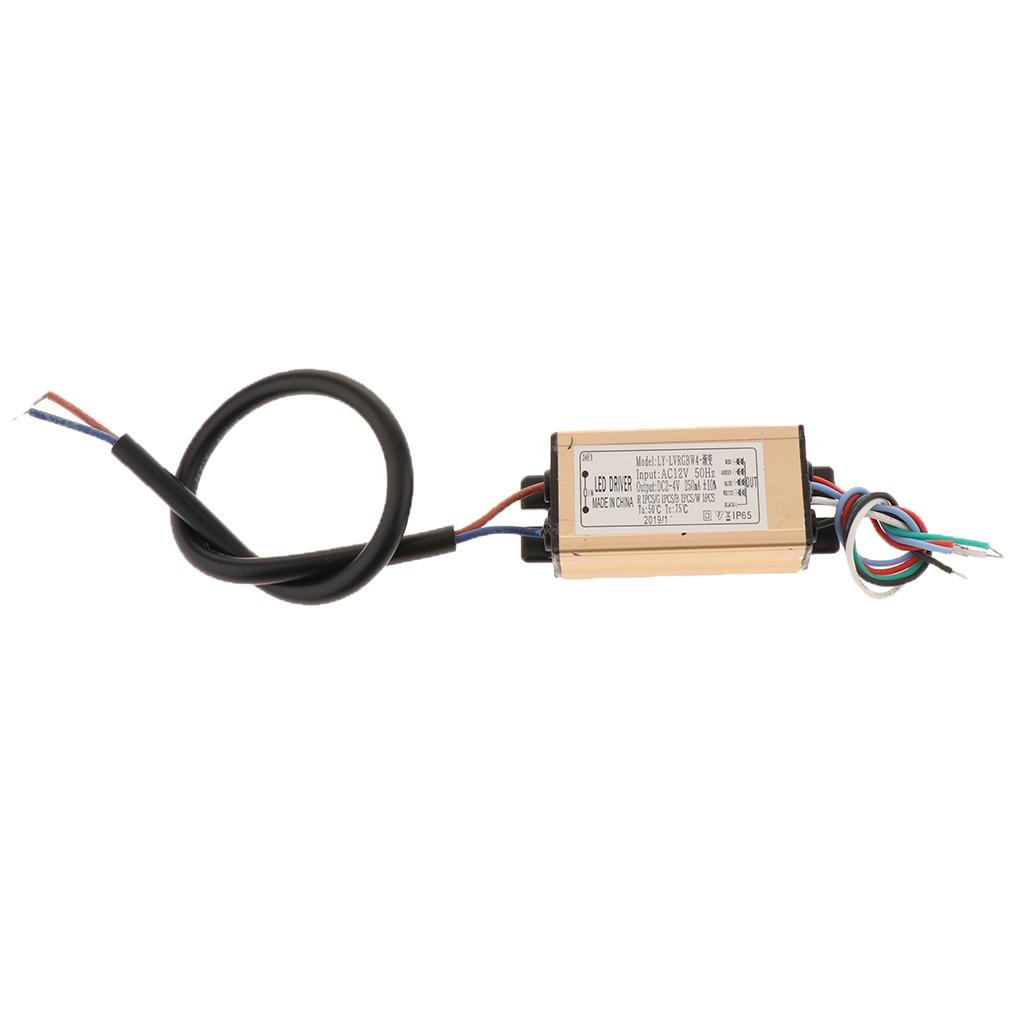

1x Underwater Lamp Power
