Description:

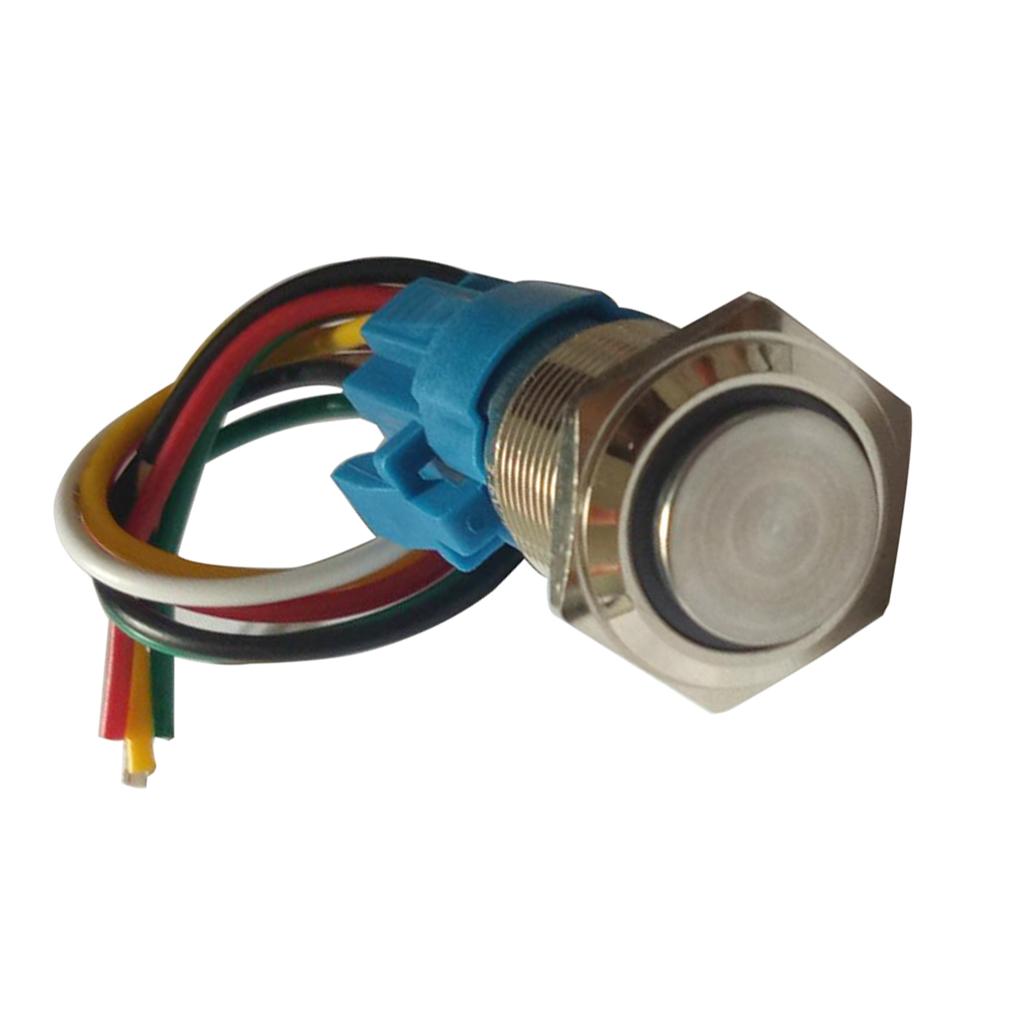

16mm Mounting Hole High Round Push Button Switch LED White Light with Wire Connector.
With waterproof rubber ring; Meet the flame retardant standard; Metal outer casing,not easy to corrode.
Silver-plated feet,better conductivity;Longer service lif.
Welded joint,stable and durable.Waterproof, dustproof and High temperature resistance.
Application: car modification, battery car modification, host modification, home appliance button, engineering instrument, twist car button, bank access button robot button.

Specification:

Item Name: High Round Push Button Switch
Overall Dimension: 35x17.8mm/1.38x0.7inch
Panel Cut-out: 16mm/0.63inch
Shell Material: Stainless Steel
Contact Material: Silver Alloy
Base Material: PBT
LED Color: White
Light Source Voltage: 12~24V
Rated Current: 5A
Rated Voltage: 250V
Operating Pressure: 2.5~4N
Nut Torque: 5~14Nm
Operating Stroke: ≈2.8mm
Button Type: High Round with Wire Connector
Contact Type: Self-resetting/Self-latching
Contact Resistance: ≤30MΩ
Insulation Resistance: ≥1000MΩ
Operating Temperature: -20~55℃
Insulation Strength: 2000V AC
Mechanical Life: ≥100,0000（times）
Electrical Life: ≥20,0000 (times)
Protection Level: IP65

Package Includes:

1 Piece High Round Push Button Switch with Wire Connector

Note:

Please allow 0.1-0.4mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
