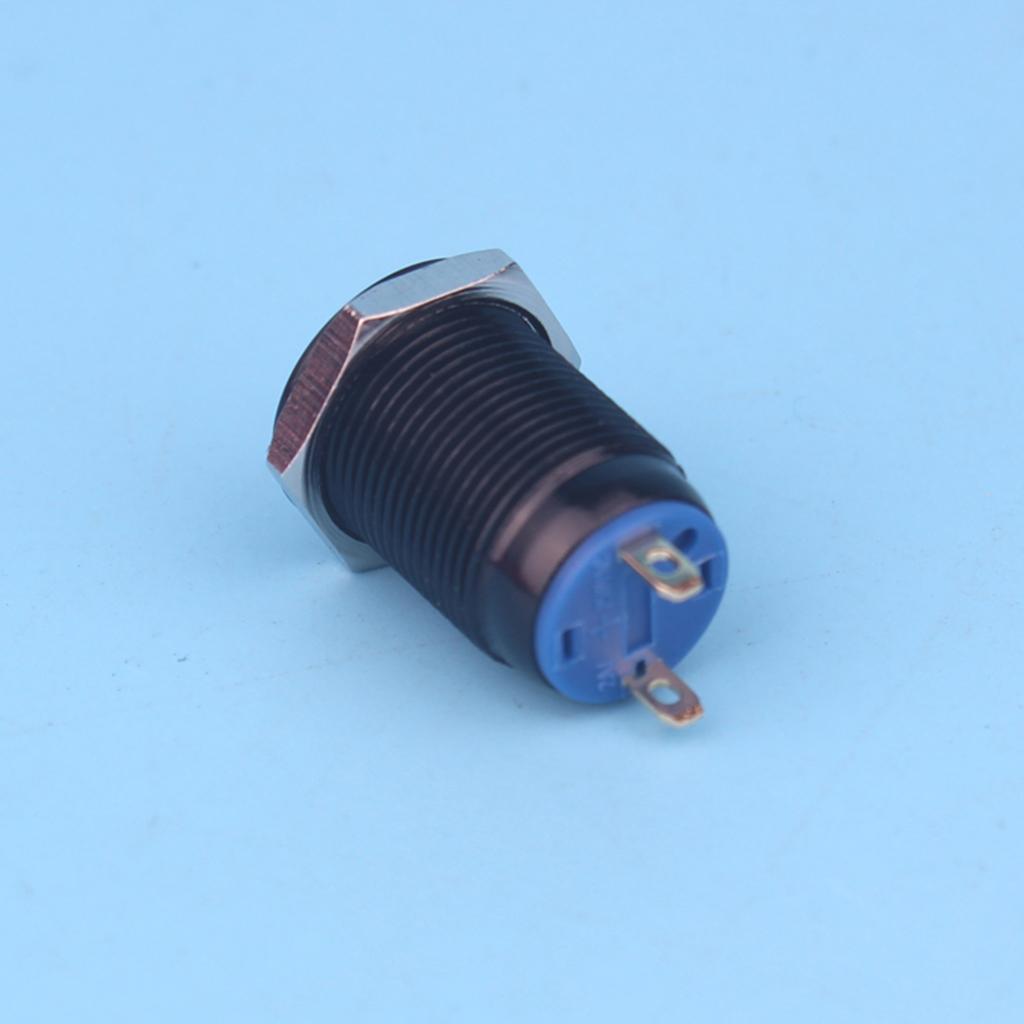

Description:

Eco-Friendly tin plating material Durable and colorfast performance
Dust-proof technology prolong service time
High-lighted LED light and low energy consumption Easy to identify working condition Auto reset LED.
Easy to install ,Installation size: 12mm
Great for turning signal, warning indicator light or any DIY customization projects.

Specification:

Model: Reset Oxidized black shell
Button head style: flat head
Contact structure: normally open button
Installation size: 12mm
Head protection level: IP67
Wiring method: wire bonding
Working voltage: 250V (V)
Working current: 3 (A)
Operating pressure: about 5N
Mechanical life: 1000000 (times)
Product Type: Push button switch
Button head diameter: 12mm
Contact Type: Silver Contact
Button color: black
Operating position: top
Lamp voltage: 0~250v
Front ring material: oxidized outer shell
Rated insulation voltage: 250v
Light source type: LED
Contact rated operating current: 3A
Working environment temperature: -20~+55
Mode of operation: button type
Rated heating current: 3 (A)
Contact resistance: ≤50m (Ω)
Insulation resistance: ≥1000 (MΩ)
Operating temperature: -20~+55 (°C)
Electrical life: 100,000
Panel thickness: 1-6 (mm)
Operating stroke: about 2.5 (mm)
Nut torque: 5-14Nm
3C rated voltage range: 37V-440V
Wiring method: wire bonding
Extended function: 1 normally open
Wiring ability: 1 normally open
Working altitude: 10000m

Package Includes:

1 Piece Push Button Switch
