Description:

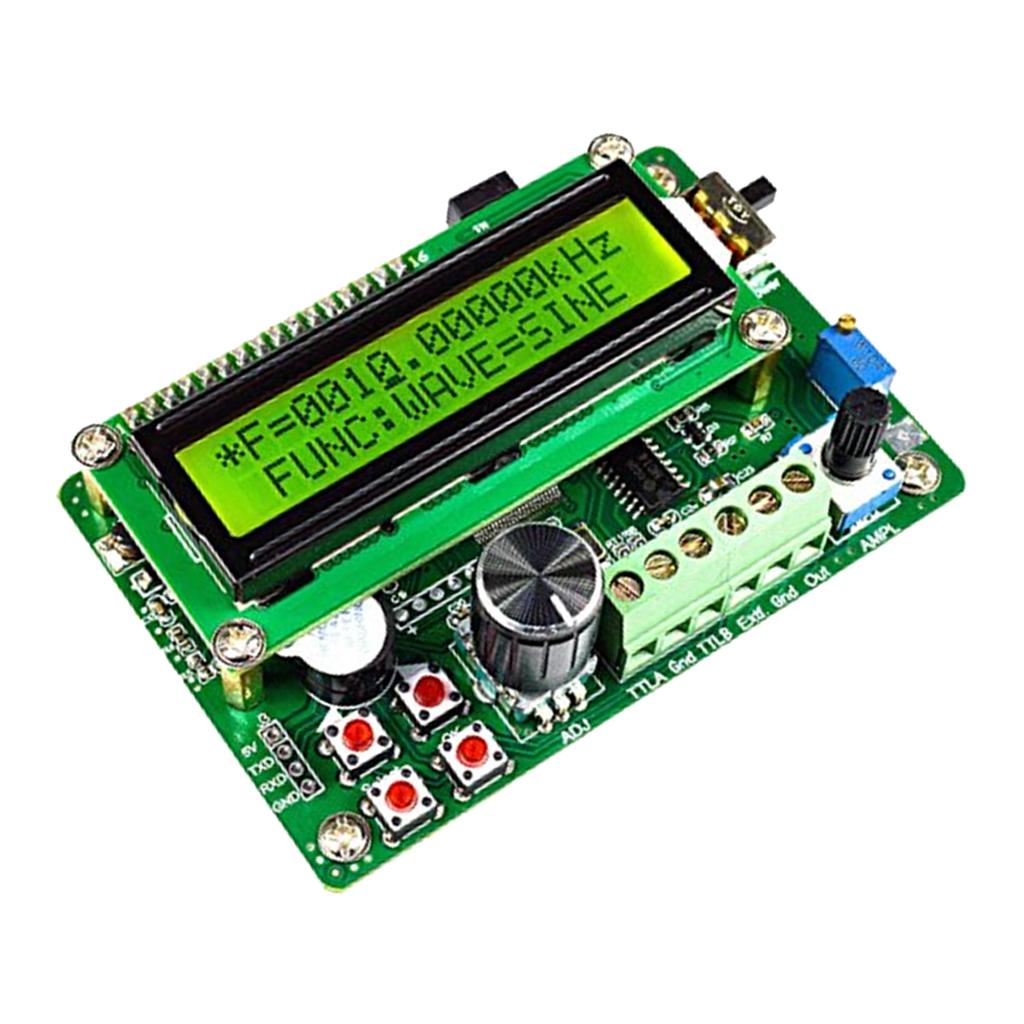

This signal generator source module uses DDS technology and FPGA design with high stability and low ECT distortion characters.
It is the ideal equipment of the electronic engineer, the laboratory, the production lines, the teaching and the scientific research.Increase and fall time of the square wave: ≤100ns * Square wave service range: 1% ~ 99% TTL output function * Frequency range: 0.01Hz ~ 5MHz.
Signal output function * Output waveforms: sine wave, square wave and triangle wave * Output amplitude: ≥10vp-P (signal output, no load) * Output impedance: 50Ω ± 10% (signal output) * DC offset: ± 2.5 V (without load).
Screen: LCD160 * Frequency range: 0.01Hz ~ 5MHz * Resolution: 0.01Hz * Frequency stability: ± 1 × 10-6 * Frequency accuracy: ± 5 × 10-6 * Sinusoidal wave distortion: ≤0. 8% (reference frequency is 1 kHz) * Trinagle linearity: ≥98% (0.01Hz ~ 10 kHz).
Amplitude:> 3vp-p * Fan outside:> 20 TTL loads * 3. counter function * Counter range: 0-4294967295 * Range of frequency meter: 1Hz ~ 60 MHz * Input voltage range: 0.5vp-P ~ 20vp-p * Storage and transfer: 10 units of parameters with storage and recall functions.

Specification:

Material: electrical components
Size: 95*65*28mm

Package Includes:

1 Piece DDS Signal Generator
