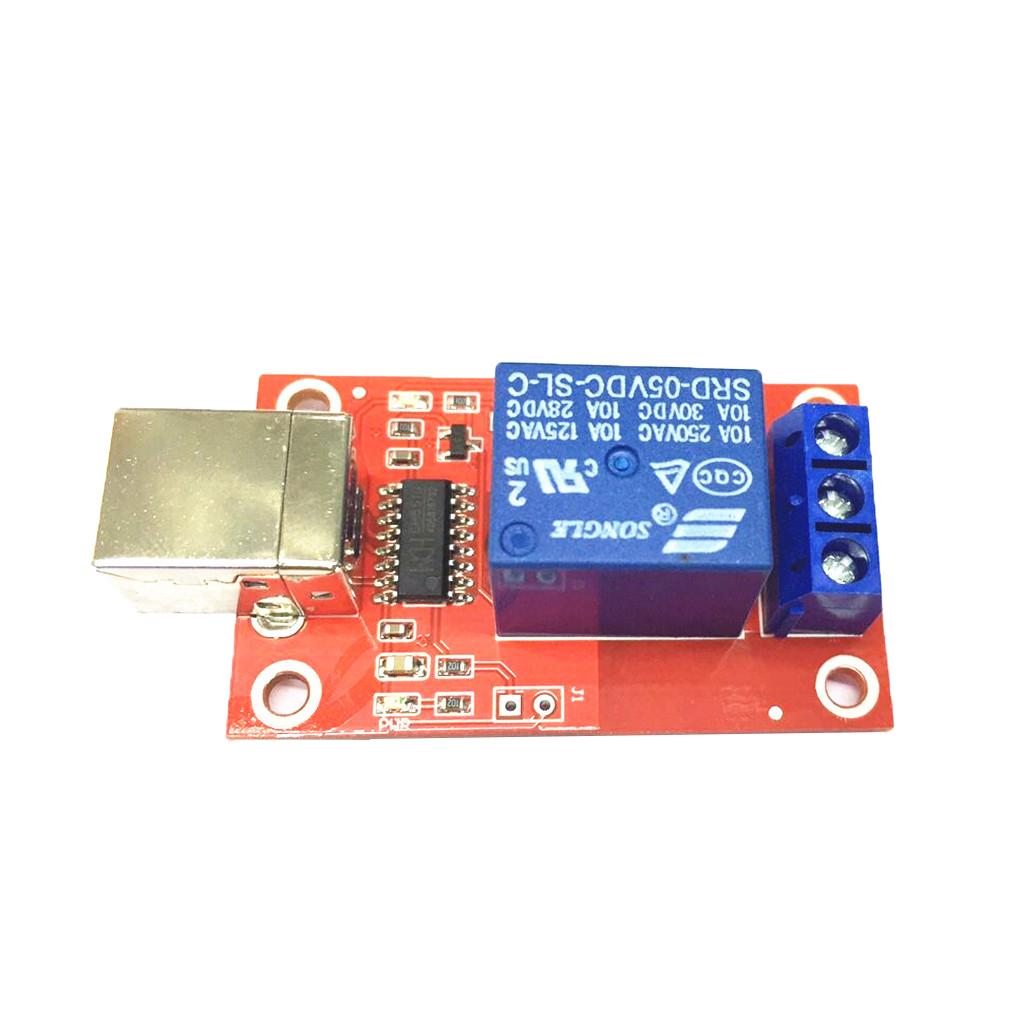

Description:

Relay control using USB HID mode, suitable for a variety of occasions and professionals
Easy to use, suitable for a variety of operating systems, such as WINDOWS 10, MAC, LINUX, etc.
With power-on memory function, it works according to the last use situation when power is on.
Strong anti-interference ability, diode freewheel protection
The relay contact part adopts double-sided thick wiring, which can pass large current and is safe and reliable.
Using high quality relay, optional 5V, 12V, 24V working voltage, quality assurance
Provide 1 way, 2 way, 4 way, 6 way and 8 way, etc., the corresponding product codes are QYF-UR01, QYF-UR02, QYF-UR04, QYF-UR06, QYF-UR08
Both input and output use 5.08mm high quality terminal block, wiring is more convenient, suitable for PLC control
Each relay has a pull-in indicator, and the working status of the relay is clear at a glance;
Each relay output leads to two sets of normally open and normally closed electric shocks, which is convenient and flexible to use.
Fixed screw holes for easy installation
The finished product passes 100% functional testing and stability testing.
Relay contact capacity: AC250V 10A DC30V 10A;

Specification:

Size: 30x50x19mm

Package Includes:

1 piece 1 way 5V USB relay module
