Description:

Product Type: DC Current 30A Detection Module. Meterial: PCB.
Achieve a DC loop current detection, overcurrent detection, overcurrent and short circuit after the output switch signal, overcurrent protection function.
Modules need to be tested in series in the tested current loop.
Use an accurate shunt current collection, sampling and accurate.
Suitable for DC current detection scenarios up to 30A, such as Intelligent car motor over-current detection, Blocking protection current detection, Short-circuit protection detection, Demonstration teaching experiment,etc.

Specification:

Product Name: DC Current Detection Module
Working Voltage: DC 5V/12V
Working Current:<50mA
Output: Relay Output
Response Time: 10ms
Working Temperature: -20℃~60℃
Working Humidity: 0-95% RH
Installation: M3 screw hole is fixed
Module Size: 72x25x18mm/2.83x0.98x0.71inch (single module)
Weight: 86g

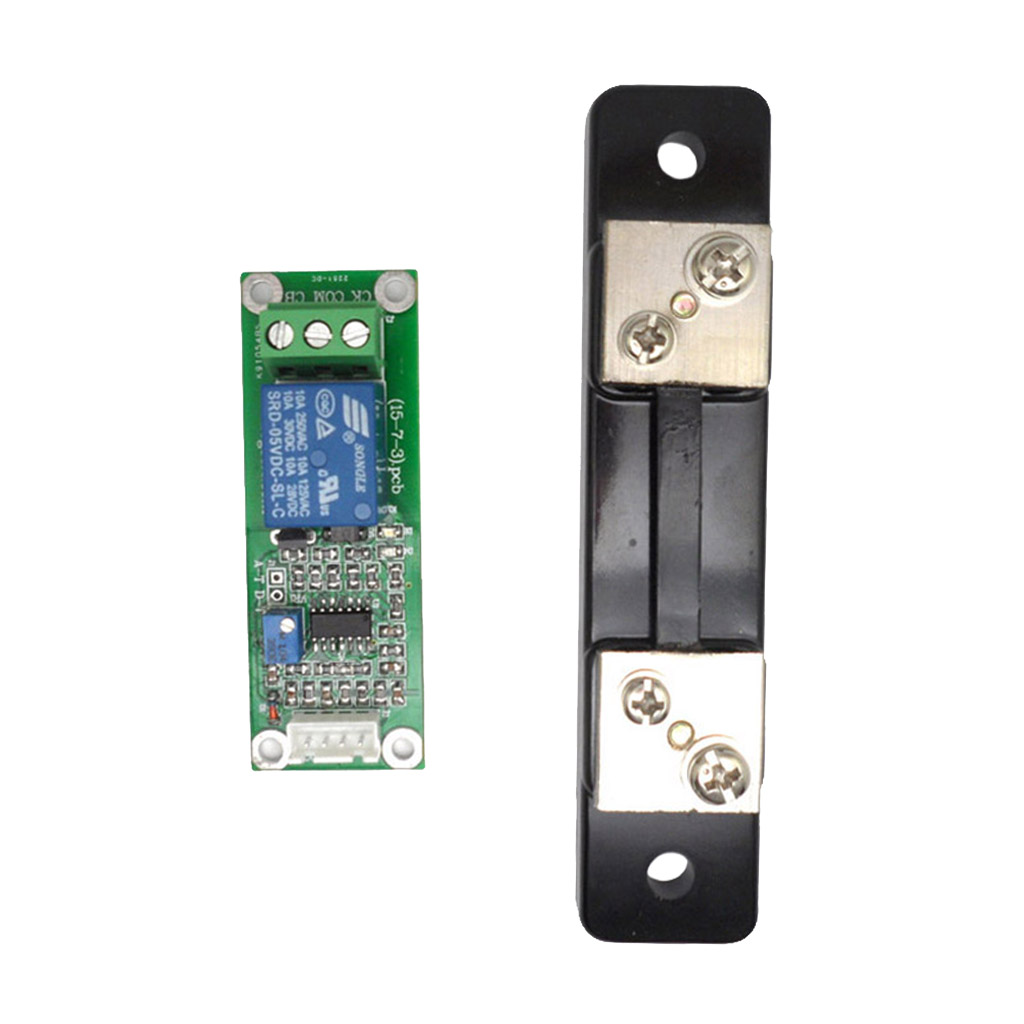

Package Includes:

1x DC Current Detection Module
1x 30A Shunt

Note:

Due to the detection error of the shunt itself and the temperature drift of the op amp, there may be errors in the detection process.
