Description:

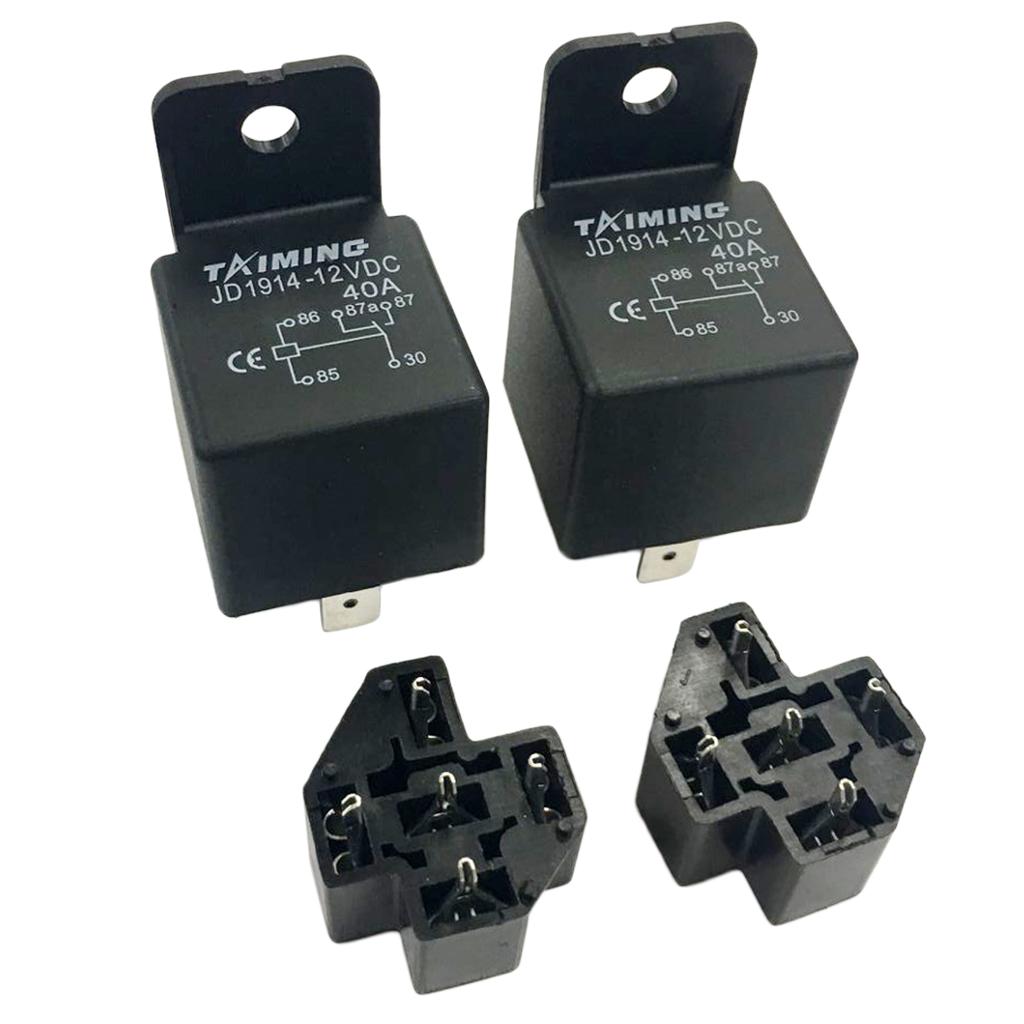

Automotive changeover relay suitable for general purpose automotive applications.
Large capacity, switchable 40A current.
Contact form: A set of conversions
Coil voltage: 12VDC / 24VDC (optional)
Contact capacity: 1c: 40A/30A 14VDC

Specification:

Coil power (W): 1.80
Contact resistance: 50mΩ
Insulation resistance: 1,00MΩ
Life (times): Electrical: 100,000; Machinery: 10,000,000
Dielectric Withstand Voltage: Open Contact: 500VAC; Between coil contacts: 500VAC
Operating temperature: -40℃~125℃
Size: 28x28x41mm/1.1x1.61 inch

Package Includes:

2 Set of Automotive Relay
