Description:

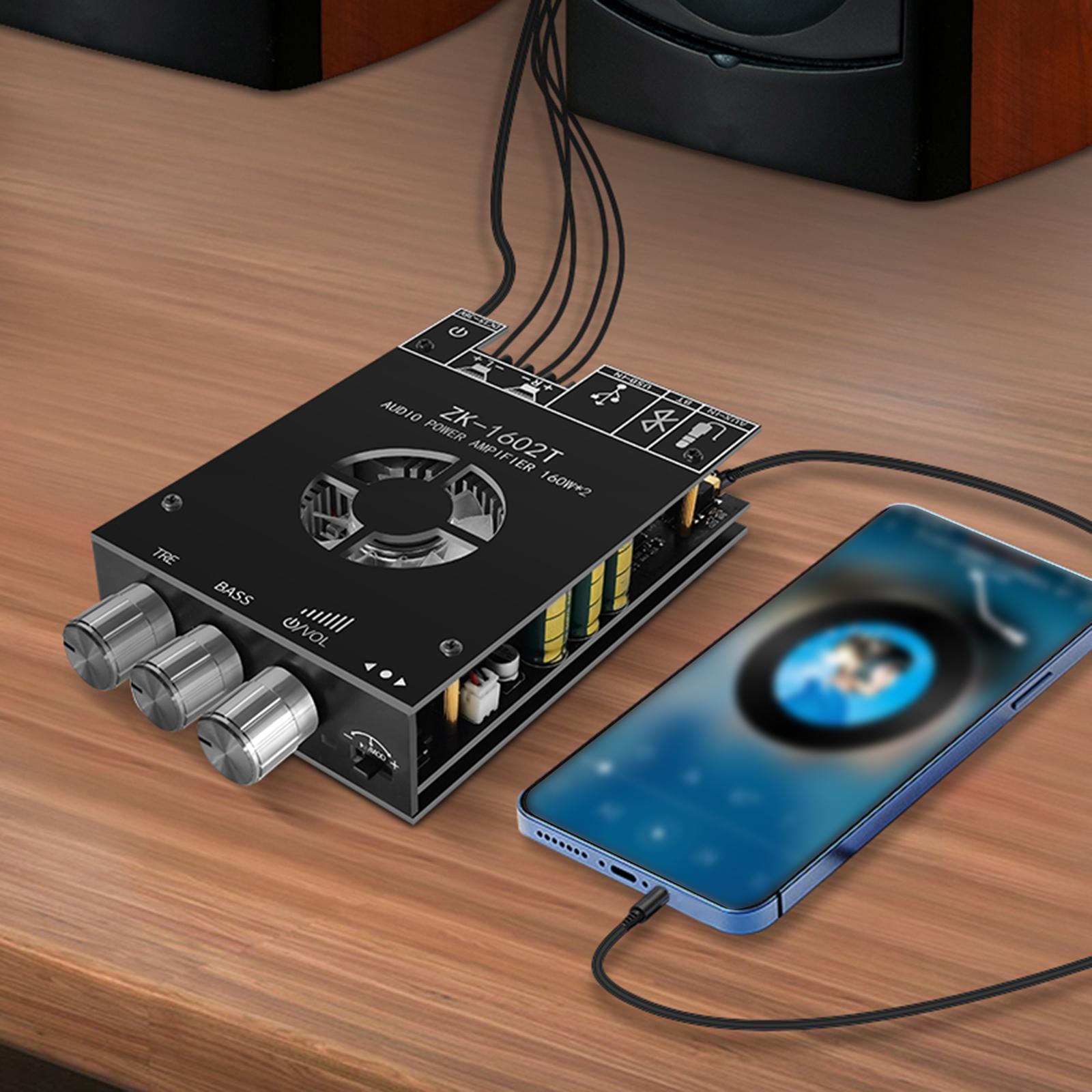

【Hifi Sound Quality, Wake Up Your Ears】: Power Amplifier Board, high fidelity sound quality, deep bass, transparent treble. High and low bass can be adjusted independently.
【Aux Interface Design Audio Input】: Audio Power Amplifier Module, AUX interface, widely compatible, support all audio equipment.
【Mobile Phone Bluetooth Connection, 10 Meters Long Distance】: Power on the Bluetooth digital power amplifier module and enter the Bluetooth connection mode. The mobile phone searches for Bluetooth WZ-BT5.0, completes the connection, opens the mobile phone playback software to play music, and enters the playback state.
【Long Life, Quiet Fan】: reduce the overall temperature of the module, so that it will not get hot, dissipate heat for the power supply, power amplifier chip and filter capacitor, reduce temperature rise and the impact of temperature rise on sound quality, and ensure long term stable operation of components
【TDA7498E Chip Solution】: This chip enables the device to maintain ultra low distortion in the entire audio frequency band while displaying high definition sound quality and can bring real high end sound quality

Specification:

material: metal
Bluetooth version: 5.0 (no occlusion, 10 meters)
Adapted speaker: 30-200W, 4-8Ω
Output power: left and right channels ≤ 160W
Protection mechanism: anti reverse connection, undervoltage, overheating, overcurrent, short circuit protection
Input method: AUX+Bluetooth+USB (the dial button switches modes and songs)
Adaptive power supply: DC15~36V (lower than 9V undervoltage protection, can also support 12V power supply)

Size Chart:

13.4cmx8cmx2.8cm/5.28inchx3.15inchx1.10inch

Package Includes:

1Pcs Power Amplifier Board

Note:

Please allow slightly errors due to manual measurement and different monitors.
