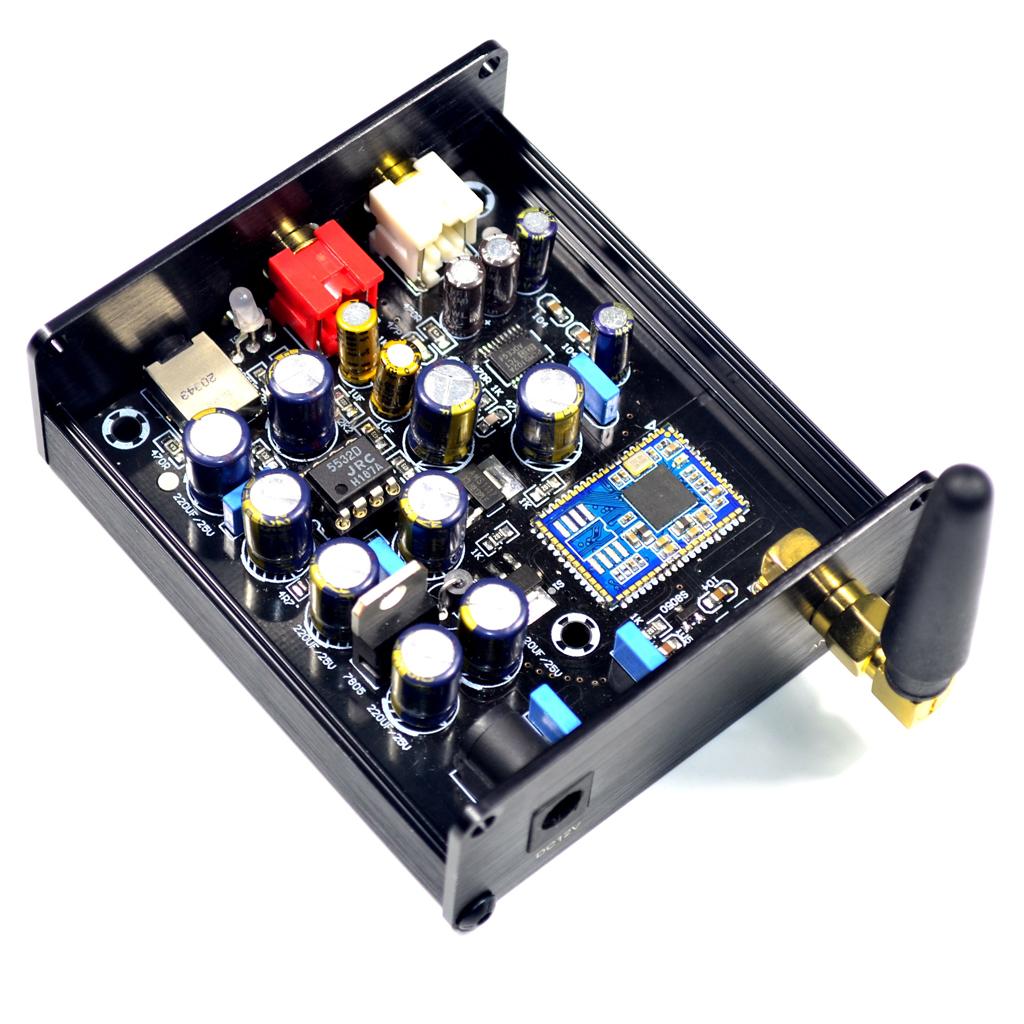

Description:

Bluetooth uses CSR8675 5.0 chip, DAC uses PCM5102, and operational amplifier uses JRC5532 (other dual operational amplifiers can be replaced freely).
The electrolytic capacitor adopts 220UF/25V electrolytic capacitor, which guarantees strong and continuous power support.
High precision patch resistor is selected to ensure good signal-to-noise ratio of the whole machine.
PCB uses 1.6mm thick double panel, 2.0A thick copper, tin spraying process to ensure good passing performance of large and small currents. First-class PCB quality.
Bluetooth 5.0 receiving distance is about 10 meters,voltage: DC 12V (inside + outside -).

Specification:

Size: 80x72x30MM (without antenna)
Voltage: DC 12V (inside + outside -)
Bluetooth 5.0 receiving distance is about 10 meters

Package Includes:

1 Piece DAC Bluetooth 5.0 Lossless Audio Decoder

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
