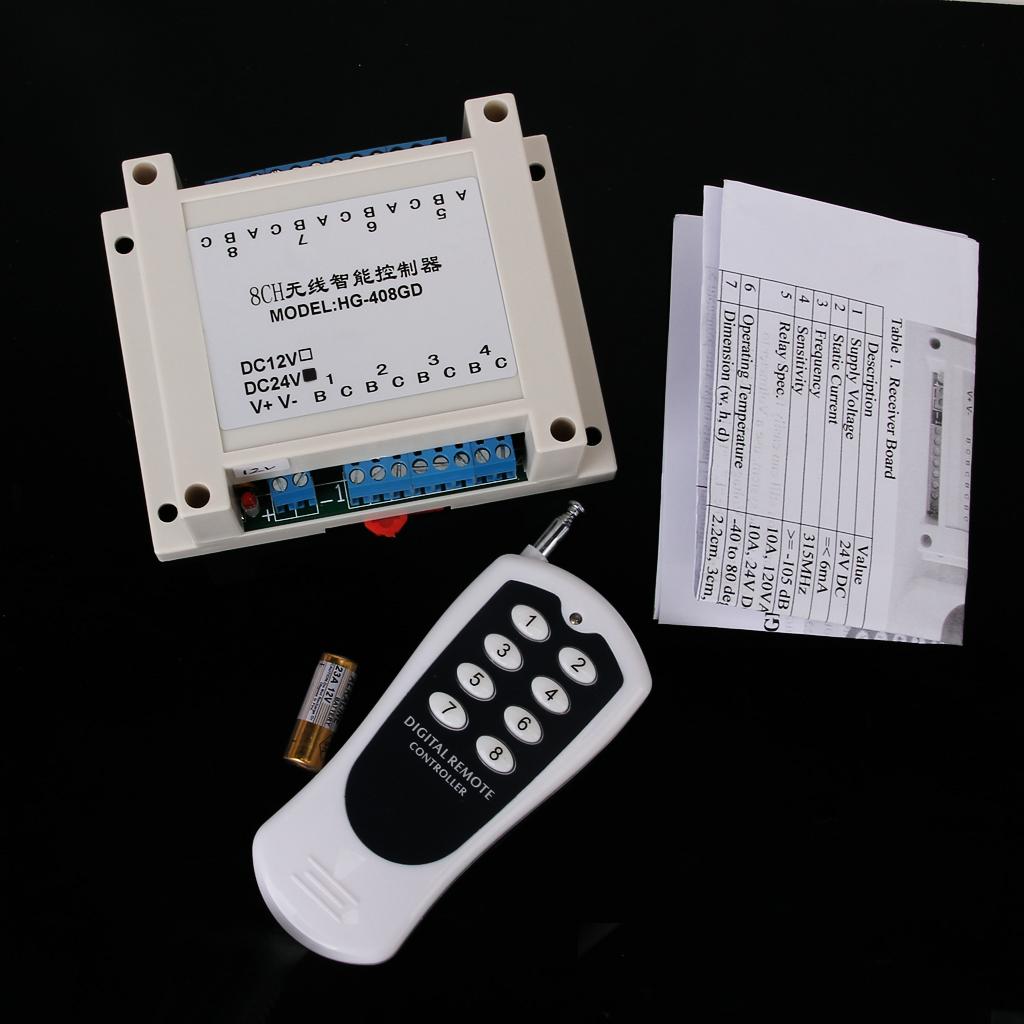

8 Channel RF Remote Control Modules 315MHZ 24V DC
- Our Wholesale Price includes Shipping & Handling Charges and GST
- Processing time12 ~ 20 days
- Country Of OriginChina
- Quantity
- Available
- SKU14007767
Product Description
This 8-channel RF remote control mainly used in electric doors, windows, lifting equipment, gateways, lifts, industrial control and security industry and other fields (particularly applicable to imports of wired doors, windows and burglar alarm control system to achieve change the wireless system adapter.)
Specification:
- Receiver Board
|
Supply Voltage |
24V DC |
|
Static Current |
≤6mA |
|
Frequency |
315MHZ |
|
Sensitivity |
≥-105dB |
|
Relay Spec. |
10A, 120V AC 10A, 24V DC |
|
Operating Temperature |
-40 to 80 deg C |
|
Dimension (w*h*d) |
0.87*1.18*0.2 inch / 2.2*3*0.5 cm |
- Transmitter (Remote)
|
Battery Voltage |
12V (1 piece) ( not included ) |
|
Dimension (w*h*d) |
0.59*0.98*0.2 inch / 1.5cm*2.5cm*0.5cm |
|
Range |
200m |
- Output Mode Selection
|
J2 |
J1 |
Output Mode |
|
Open |
Short |
Momentary (IC: SC2272-M4) |
|
Short |
Short |
Latched (IC: SC2272-L4) |
Package Includes:
- 1 x Receiver Board
- 1 x Transmitter ( Note: We have two kinds of products. There is a slight difference on the appearance . One is 8 buttons, the other one is 12 buttons. We will send it at random. )
- 1 x English Manual
