Description:

【High Quality Material】: Waterproof Relay and Harness is made of high quality PP material, reliable quality, waterproof and durable.
【Easy to Install】: Automotive Relay has fixed metal holes for easy installation.
【High Performance】: Pure copper core cable, tinned brass pins, with higher conductivity and more stable performance.
【Long Service Life】: The Car Heavy Duty Relay is made of high grade flame retardant material, ensuring use and long service life.
【Package Included】: You will receive 5x Waterproof Relays.

Specification:

12VDC (maximum 14V)
Waterproof 5-pin SPDT (single pole double throw)
Pure copper coil relay
40A/30A high switching capacity
Nominal Coil Voltage: 12 VDC
Contact Ratings: NO 40A 14VDC
Coil Power: 1. 8W
Contact Resistance: 100MMAX(at6vdc lA)
Coil Resistance: 80Ω
Max Switching Current: 40A
Must Operate Voltage: 6-8 VDC
Max Switching Power: 560W
Must Release Voltage: 0.6-3.6 VDC
Maximum Applied Voltage: 15.6 VDC

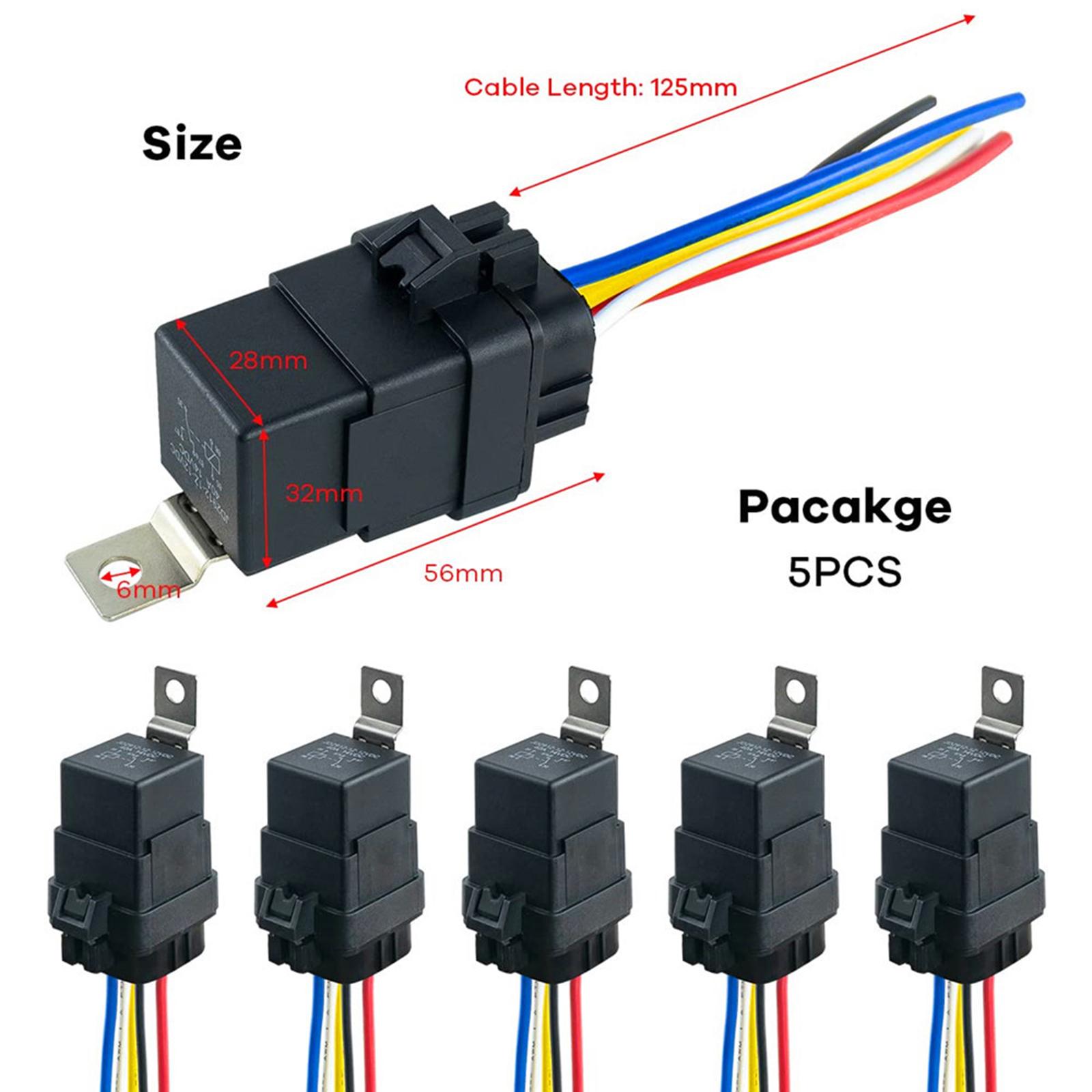

Size Chart:

20cmx4.32cmx3.56cm/7.87inchx1.70inchx1.40inch

Package Includes:

5 Waterproof Relay and Harness

Note:

Please allow slightly errors due to manual measurement and different monitors.
