Description:

• The SN74HC165N is a neat little IC that will take an input of up to 8 parallel lines and produce a single, serial output. It is a great way to increase the number of inputs on a microcontroller.
• This breakout makes it easy to prototype using the 74HC165 by breaking out all of the pins you need to standard 0.1" spaced headers.
• We also lined up the data and power pins so that you can easily make chains of them and expand the number of outputs under your control!
• This chip works with a voltage supply anywhere in the range of 2-6VDC, and at clock frequencies of up to 29MHz (@6VDC).
• Wide Operating Voltage Range of 2 V to 6 V
• Parallel-to-Serial Data Conversion
• Outputs Can Drive Up To 10 LSTTL Loads
• Low Power Consumption, 80-uA Max ICC
• 4mA Output at 5 V
• Low Input Current, 1 uA Max
• Complementary Outputs
• Direct Overriding Load (Data) Inputs
• Gated Clock Inputs
• 0.1" Spaced Headers

Package Includes:

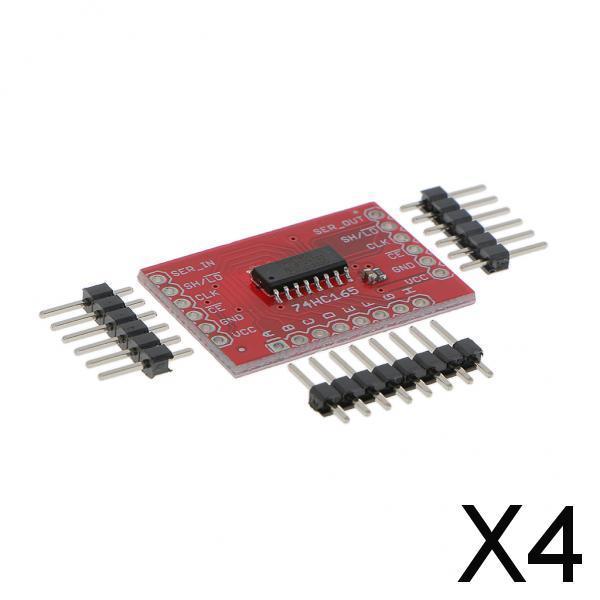

• 1x SN74HC165 -In Breakout Module(4 Pack)
