Description:

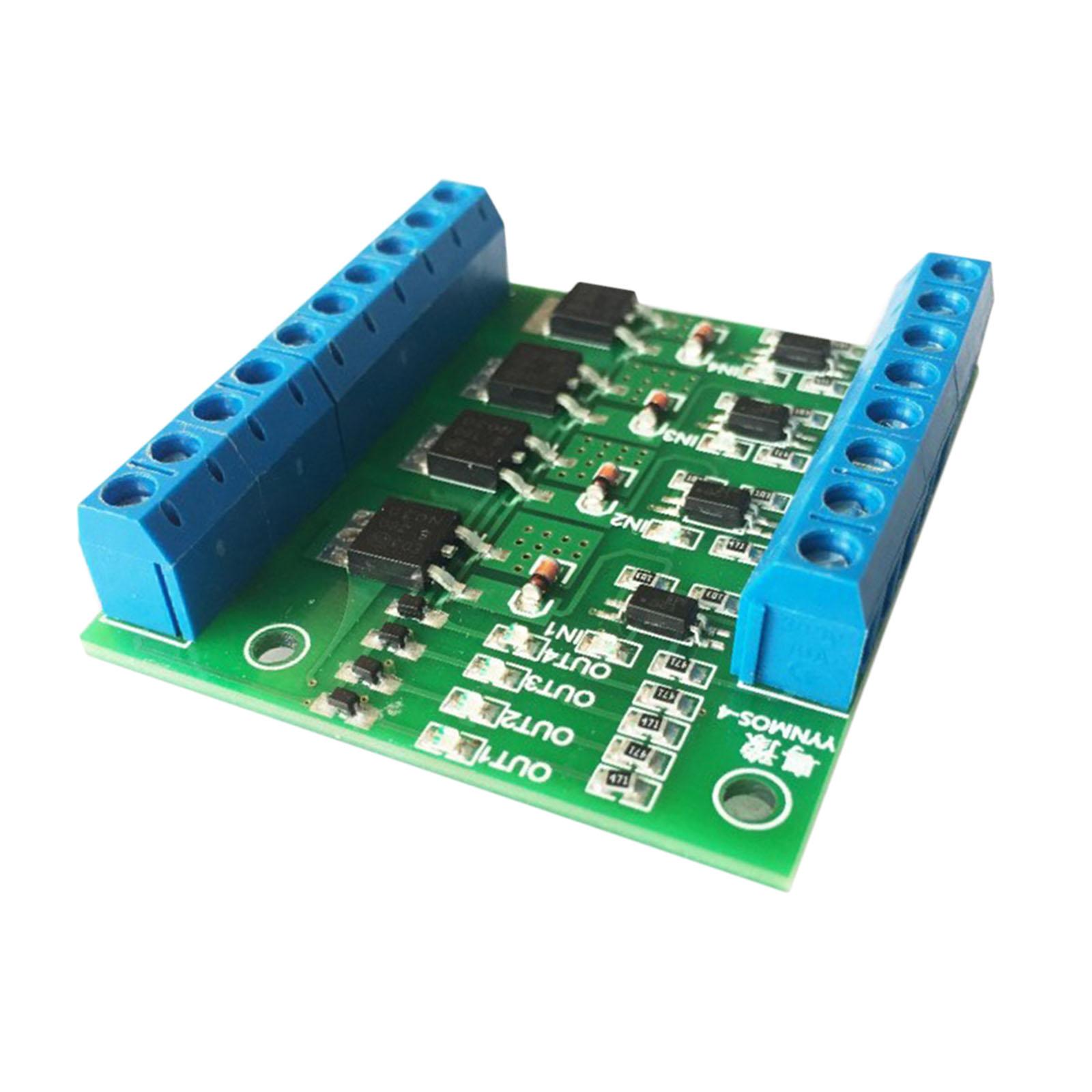

4 Channel Driver Module PLC Module Circuit Board: Strong anti interference ability, stable performance, complete isolation of input signal and output.
Input signal: PWM signal between 3~20V; Output capability: DC 3.7V~27V, current within 10A per channel
PWM frequency: 0~20KHZ
Indicator light: with input signal and output indicator
Application description: The output terminal can control high power equipment, motors, light bulbs, LED strips, DC motors, pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness etc.

Specification:

Module interface description:
DC+: The positive pole of the DC power
DC- : Negative pole of the DC power
PWM: Signal input terminal (connected to the IO port of the , PLC interface, DC power etc.)
GND: Signal negative terminal
OUT+: Positive pole of the output terminal (connected to the positive pole )
OUT-: Negative pole of output terminal (connected to the negative pole )

Size Chart:

5cmx5.5cm/1.97inchx2.17inch

Package Includes:

1 Piece 4 Channel Driver Module PLC Module Circuit Board

Note:

Please allow slightly errors due to manual measurement and different monitors.
