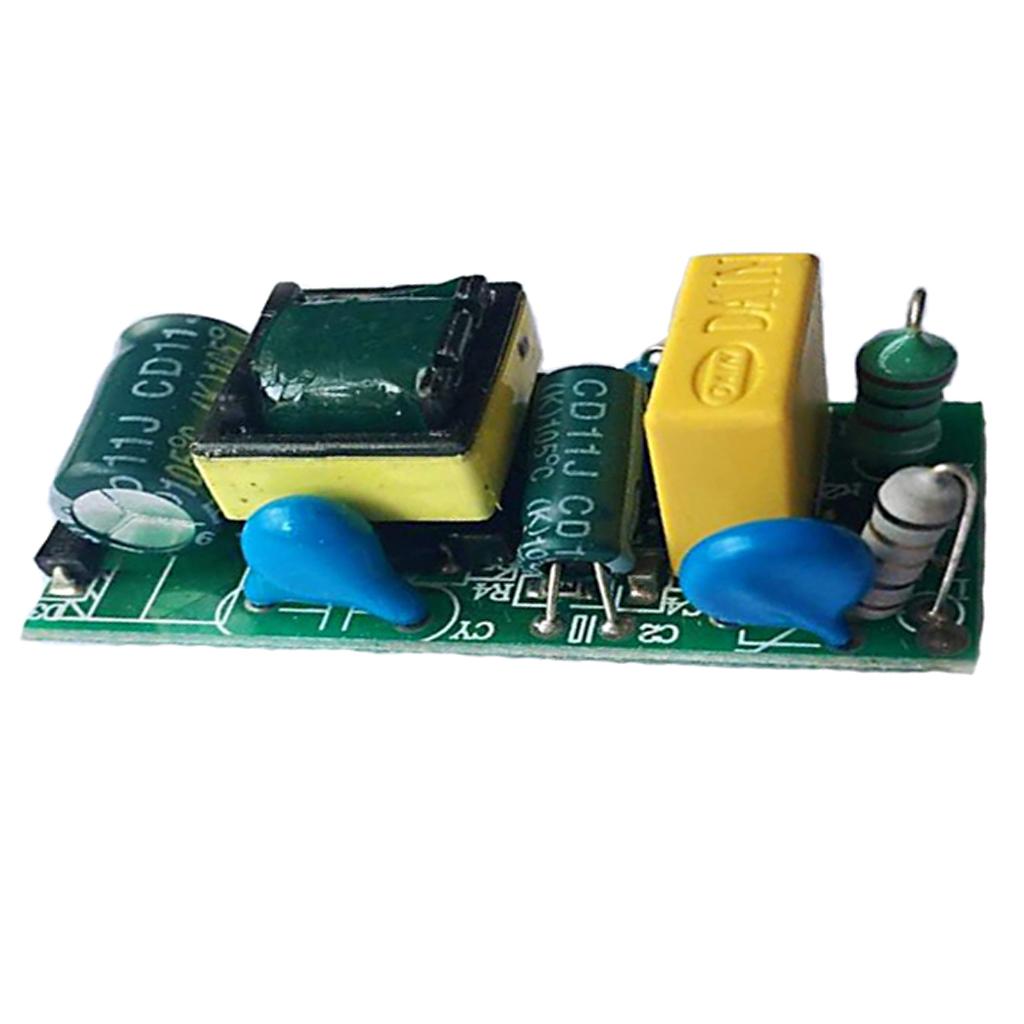

Description:

Rated voltage: AC85-265V
Frequency: 50 ~ 60 Hz
Input power(Loading): ≤ 30W
Output power:maximum 7W.
Output Current maximum 300 mA
Output voltage(loading): DC 12-24（V）
Short-circuit projects: OK
Over loading: OK
Input-Outcut AC 1.5 KV/5 mA 1Min
Input-Housing AC 1.5 KV/5 mA 1Min
Ripple ≤ 600 MVpp(120Hz)
Efficiency ≥ 82 %
Power factor / PF ≥ 90 %
Working Temperature -25 °C ~ +40 °C
Protection level: IP20
Operations Size(mm): L x W x H = 44 x 19 x 15mm
Suitable for lamps E27 GU10

Package Includes:

1 Piece Led Light Driver
