Description:

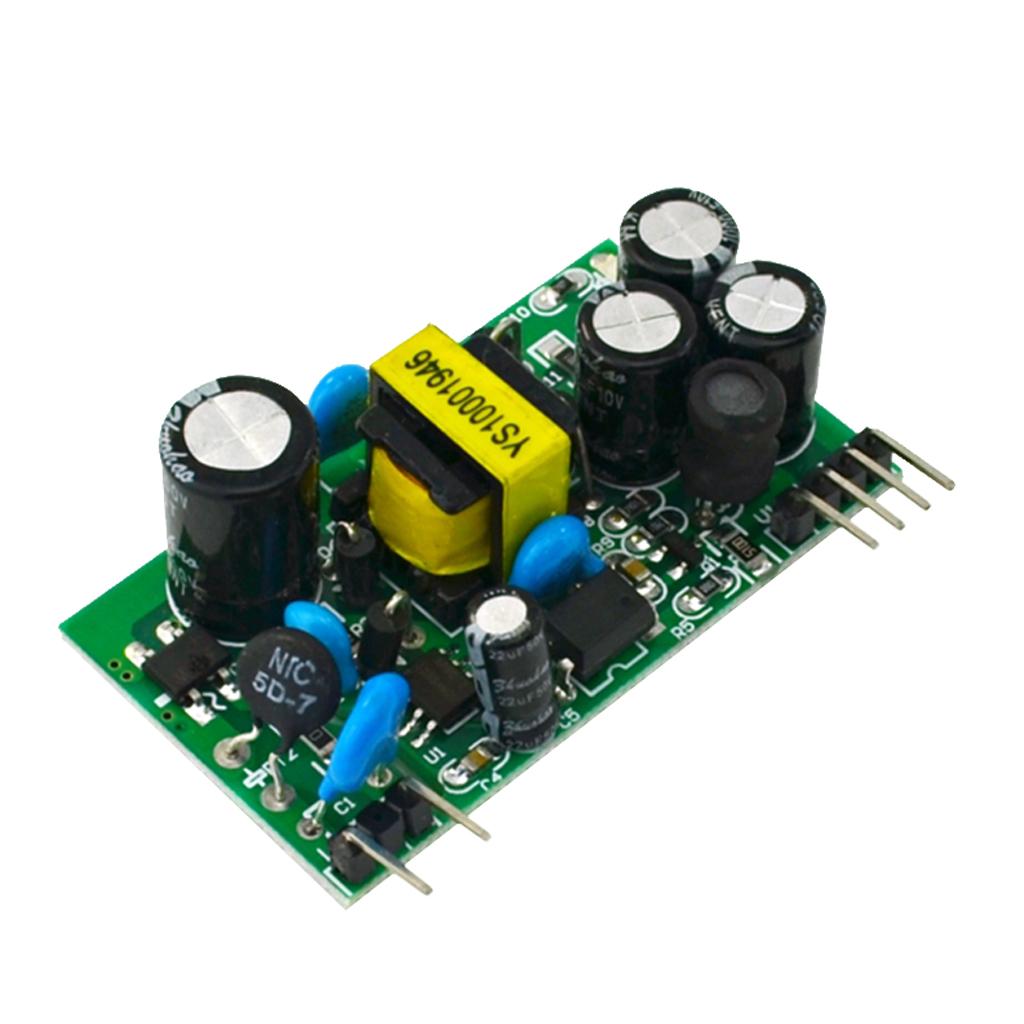

This AC to DC transformer can convert output to 5V500mA+12V300mA, dual output, stably and simultaneously.
Over-load protection, over-heating protection and short circuit protection.
Isolation built-in power supply module bare board.
Small size, high efficiency, full load aging test and ultra low output ripple Small size and high efficiency with inserted needle to save space
Perfect for electronic hobby project, wide application, you can use it on radio, car audio, LED display, motor, cell phone, etc.

Specification:

Input voltage: 100-264V
Output power: 3-150W
Input current: ＜0.2A
Working efficieny:60-90%
Insulation resistance：I/P-O/P:500VDC/100M Ohms
Excess voltage protection:VH1:＞50%
Working frequency: 47-63HZ
Operating temperature: -40~+85℃
Modulation Mode: PWM
Transistor connection mode: single end type
Material: power board
Size: approx. 51 x 30 x 17.5mm/2 x 1.2 x 0.7inch

Package Includes:

2 Pieces AC/DC Converter Switching Power Supply Module
