Description:

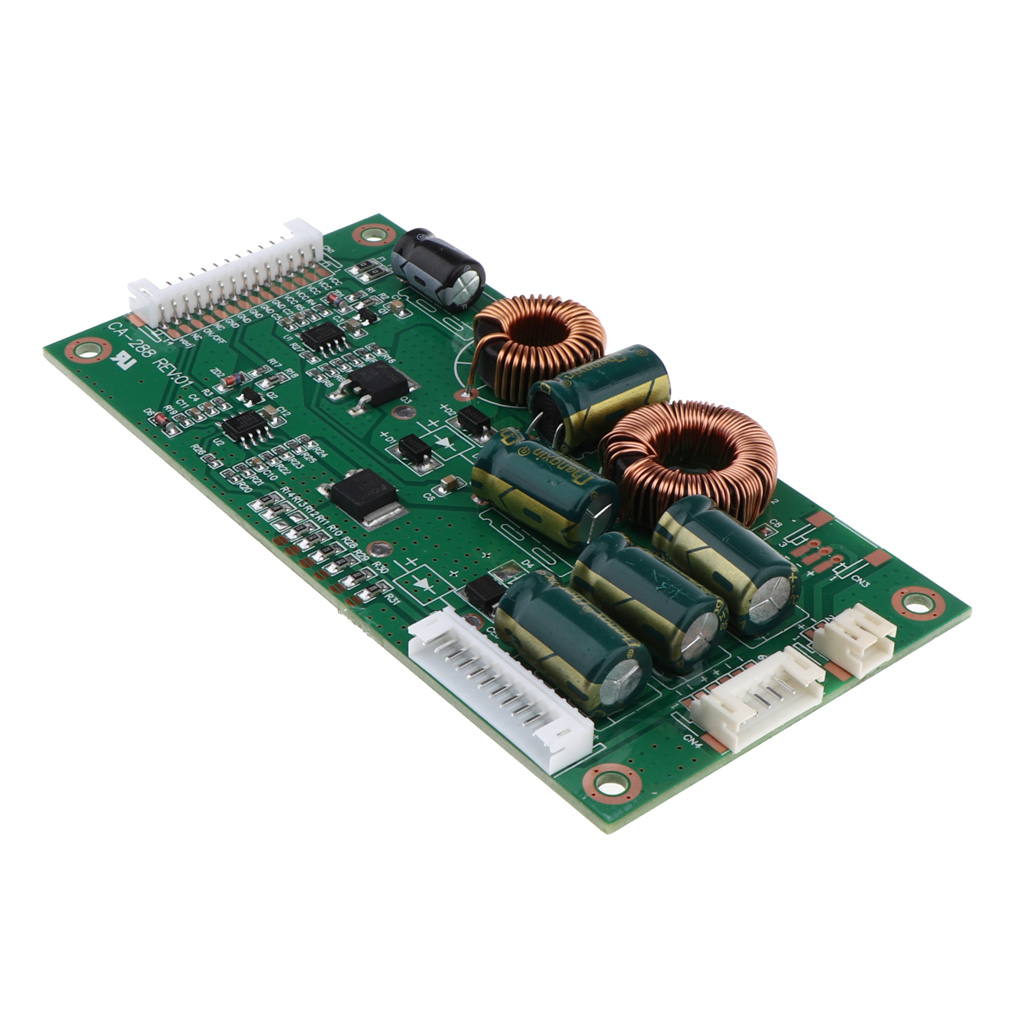

LED LCD TV Constant Current Backlight Inverter Driver Board Boost Module.
Suitable for 26-55 inch LCD TV, universal for all brands and models.
Input Voltage: 19-45V; Output Voltage: 60-165V; Default Output Current: 200mA (10-1000mA Adjustable)
Connect the resistor soldering remarked spot to increase the current accordingly.
The output voltage is 60V-165V, no need to change it manually, the board will automatically adapt to boost. This board is not available for backlights below 60V.

Specification:

Size: 120x60x10mm / 4.72x2.36x0.39inch

Package Includes:

1 Piece LED TV Constant Current Board

Note:

Please allow slightly measuring deviation due to manual measurement.
