Description:

High or Low level trigger, Special bi-directional drive IC design.

Strong anti - interference ability, using diode aftercurrent protection.

Relay contact parts are double-sided rough wiring, for large current through, safe and reliable.

The input and output are all equipped with 5.08mm high-quality wiring terminals, which is more convenient and suitable for PLC control.

Each relay has a pick-up indicator light, and the working state of the relay is clear at a glance.

Each relay output leads to the normally open and normally closed two groups of trigger, convenient and flexible to use.

It is equipped with two wiring functions: wiring terminal and arranging needle (arranging needle needs to be welded by oneself), which is convenient for customers to choose and use more!

Specification:

Module with relay control, AC voltage maximum 250V, AC current maximum 10A, DC voltage maximum 30V, DC current maximum 10A.

Package Includes:

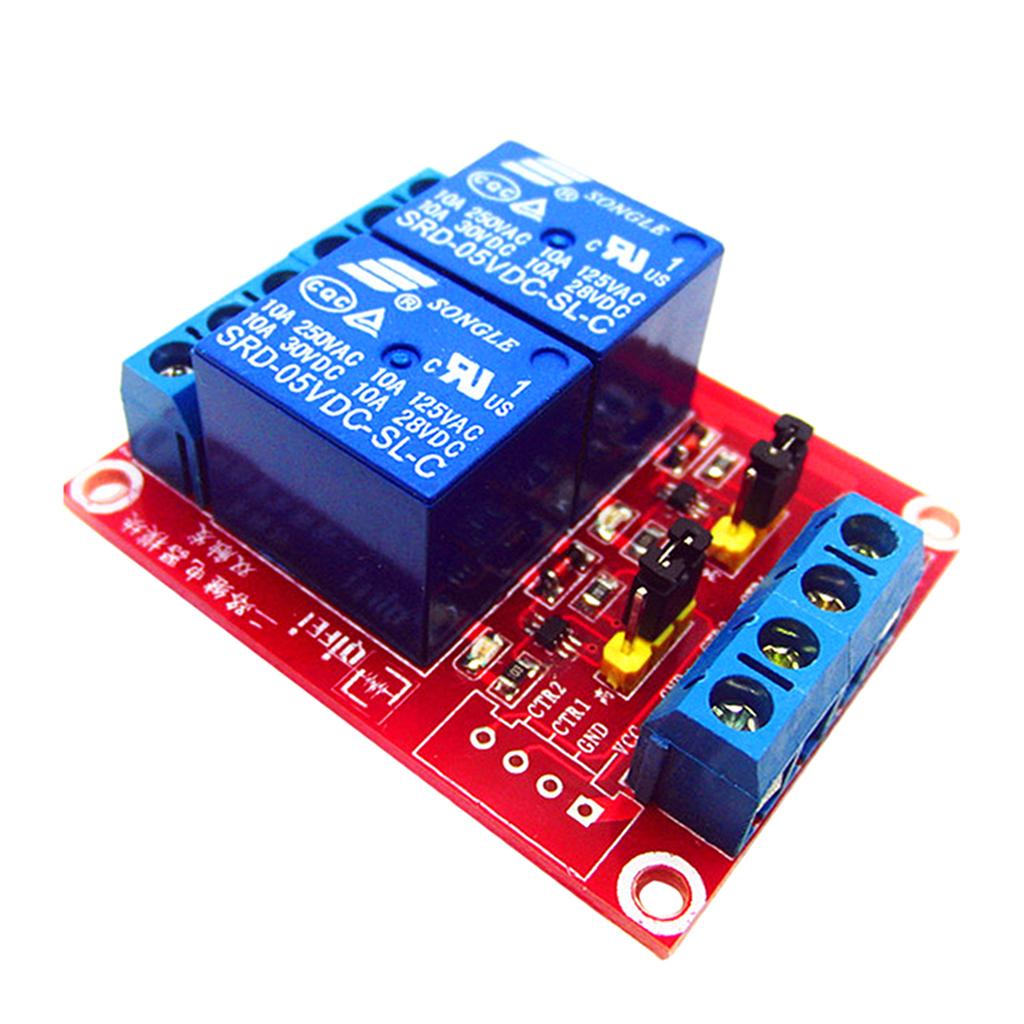

1 Piece 2 Channel 24V Relay Module
