Description:

Uses: Light detection, light sensors, intelligent car search module
The comparator output signal clean, waveform, and driving ability, than 15mA.
Adjustable potentiometer adjustable detection light.
The output form: DO digital switch outputs (0 and 1) and AO analog voltage output.
Provided with fixing bolt holes for easy installation.
Using wide LM393 voltage comparator.

Specification:

Material: Plastic
Operating Voltage 3.3V-5V
Small Board PCB dimensions: 3.2cm x 1.4cm
Module Size: 50 x 18mm / 1.97 x 0.71inch

Package Includes:

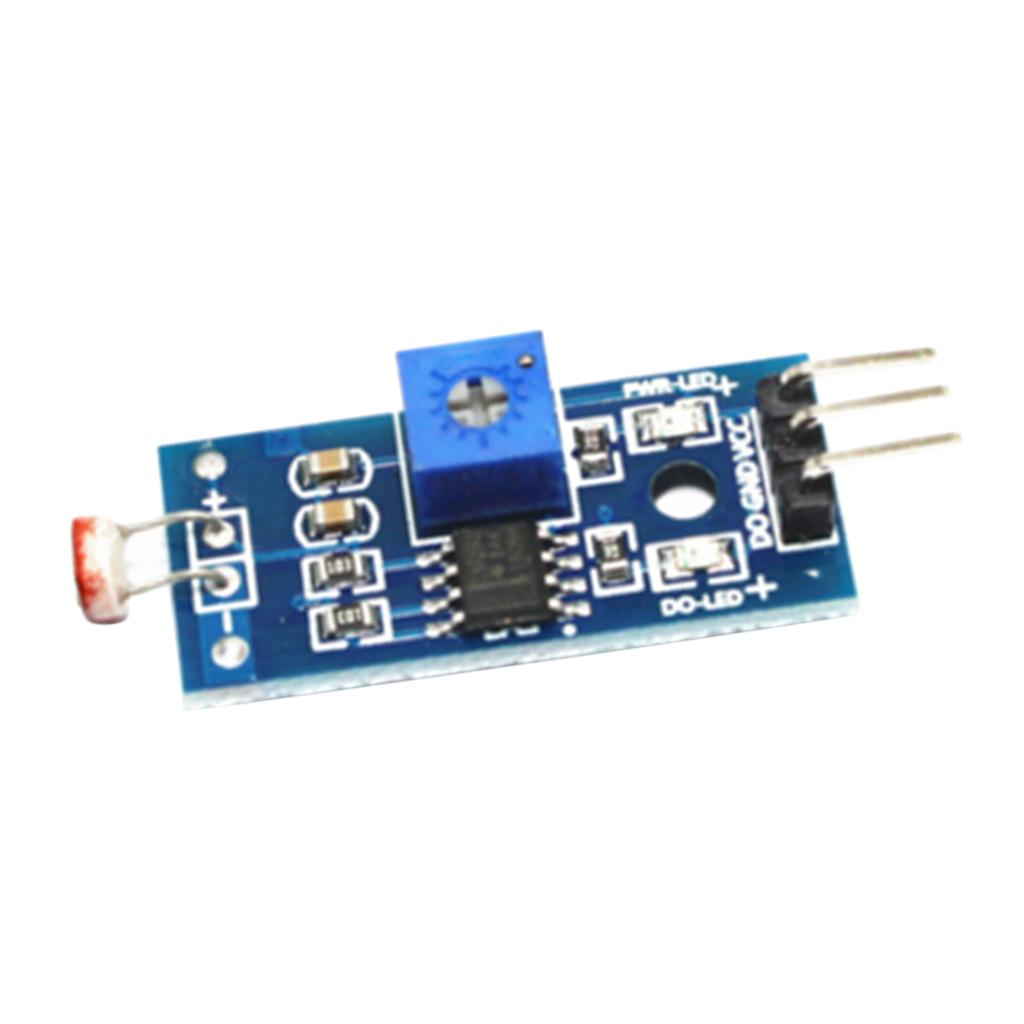

1pc Photoresistors Sensor Module

Note:

Module operating instructions
1.Photosensitive resistor module most sensitive to ambient light, generally used for testing the brightness of the ambient light, triggering single-chip or relay module;
2, module in the ambient light intensity does not meet threshold value, the DO Terminal output high, when the outside ambient light intensity exceeds the set threshold value, the DO Terminal output low;
3, DO the output can be directly connected to the microcontroller, by single-chip computer to detect high or low level, to detect light intensity changes of the environment;
4, DO the output can directly drive our relay modules, which can form a light control switch.
5, analog output AO and AD module, by AD conversion, light intensity can be obtained more accurate values;
Wiring instructions:
1, the VCC to supply cathode 3.3-5V
2, GND connect the negative pole
3, DO TTL signal output
4, AO analog signal output
